If you operate a professional stone processing workshop, producing kitchen countertops, dressing tables, custom tombstones, monuments, or irregularly shaped architectural stone, you know how important a qualified 5-axis CNC bridge saw is. Every year, many factory owners contact us for machine upgrades or new equipment purchases, but most of them don't know how to choose a 5-axis bridge saw truly suitable for their production.
Many buyers simply compare prices or only look at the basic appearance of the machine. They ignore core configurations, structural rigidity, actual processing performance, and after-sales support. Ultimately, they buy machines with insufficient power, poor precision, susceptibility to deformation, and low efficiency, causing endless trouble for mass production. This guide is a summary based on 30 years of experience in stone machinery manufacturing and thousands of customer case studies. We've included all the practical and real buying tips to help customers worldwide avoid pitfalls and choose the most cost-effective 5-axis CNC bridge saw.
1. Why 5 Axis Bridge Saw Is Different From Ordinary 3 Axis / 4+1 Axis Machines
Many people confuse 3 axis, 4+1 axis and full 5 axis bridge saw, and they think all multi-axis machines can do complex stone processing. Actually, the gap is very huge in actual production.
Traditional 3 axis bridge saw only supports simple straight cutting and fixed-angle chamfering. It cannot adjust the head angle freely, so it is totally unable to finish arc edges, S-shaped lines, special R corners and irregular profiling work. 4+1 axis machines have one auxiliary rotating axis, but their linkage performance is limited. When doing continuous curve cutting or batch profiling, uneven edges, size deviation and frequent position offset will occur.
Only full 5 axis linkage bridge saw can achieve 0~360° head rotation and 0~90° free tilting. The whole cutting path is smooth and continuous, no need manual secondary correction. This is the basic guarantee for high-end customized stone processing, especially suitable for hard granite tombstone profiling, sintered stone special-shaped cutting and high-precision countertop making.
Third, confirm your processing types. If you only do simple straight cutting and ordinary chamfering, basic functions are enough. But if you need customized edge profiles, tombstone wave lines, S-shaped edges, batch vertical cutting and automatic layout cutting, you must choose full-function 5 axis machine with industrial camera and DXF import system.
2. Confirm Your Actual Processing Needs First Before Buying
Before you inquire or order a 5 axis bridge saw, you need to clear your own production demands first. Different processing scenarios match different machine configurations, no need to overbuy high-end functions you don't use, and also cannot buy low-end machine that cannot support your work.
First, confirm your main stone materials. If you mainly process soft stone like marble and travertine, common standard configuration can meet demand. But if your main products are hard granite, sintered stone, ultra-thick ceramic stone and high-density engineered stone, you must choose machine with high-power main motor and thickened rigid body, otherwise the machine will shake seriously and cause edge chipping.
Second, confirm your maximum slab size and processing range. You need to check your regular raw stone length, width and thickness, to match the machine's effective cutting travel. Many customers buy small-stroke machine casually, then find they cannot process large-size slabs, which waste lots of money.
Third, confirm your processing types. If you only do simple straight cutting and ordinary chamfering, basic functions are enough. But if you need customized edge profiles, tombstone wave lines, S-shaped edges, batch vertical cutting and automatic layout cutting, you must choose full-function 5 axis machine with industrial camera and DXF import system.
3. Core Technical Parameters You Must Check (Most Buying Traps Here)
Parameters are not just numbers on the specification sheet. Every key parameter directly decides the machine's long-term stability, cutting speed and finished product quality. Many manufacturers falsify parameters to lower costs, so buyers must check every item carefully.
3.1 Full 5-Axis Linkage Performance
A real industrial-grade 5 axis bridge saw supports full RTCP linkage function, rather than simple single-axis movement. The cutting head can rotate 360 degrees infinitely and tilt from 0 to 90 degrees freely. Whether it is positive chamfer, negative chamfer, inner arc, outer arc or continuous special-shaped lines, the saw blade can maintain the best cutting angle at all times. Some low-cost machines only have fake 5-axis functions, cannot perform continuous profiling, and are prone to cutting pauses and trajectory distortion.
3.2 Indutrial Level Camera, Water-proof, Dust-Proof
Normal Cameral is not suitable to be used in stone fabrication workshop. The water&Dust will influence its lifetime and functionality. A high-definition industrial camera that supports automatic slab scanning, vein matching are better choice. Workers do not need manual marking and positioning, which saves a lot of labor time and avoids manual operation errors.
3.3 22KW High-Power Variable Frequency Main Motor
Hard granite and sintered stone have super high hardness, require strong and stable cutting power. Many cheap machines use low-power ordinary motor, which will appear insufficient power, blade shaking, motor overheating and frequent overload protection during hard stone cutting. Our machine is equipped with self-developed 22KW permanent magnet frequency conversion main motor. The power output is stable and strong, can handle long-time continuous hard stone cutting and complex profiling, no stuck cutting, no burnt edge, greatly reduce blade loss.
3.4 High-Precision Transmission System
Machine precision completely depends on transmission parts. A qualified industrial 5 axis bridge saw must be equipped with imported Taiwan high-precision helical rack and pinion, paired with high-quality ball screws and linear guide rails. It runs smoothly with high positioning accuracy and low noise. Some low-cost machines use inferior transmission accessories. After several months of operation, obvious gaps and position deviations will appear, resulting in unqualified finished products that cannot be fundamentally repaired.
3.5 Suction Cups with Big Loading Capacity
Suction cups are important to achieve machine's full automation. They are used to move slabs aside, when there;s conficts between tool paths. So operators no need to pay attention to the sutting steps, pause the cutting, and move the slab aside manually. It's also the important features to fully utilize slabs.
3.6 Heavy-Duty Machine Structure Decide Long-Term Service Life
Many buyers only care about parameters and functions, ignore machine body structure. In fact, stone cutting belongs to long-time heavy-load vibration work. If the machine frame is thin and light, after one or two years of continuous work, the beam will deform slightly, resulting in inaccurate cutting size, unflat edge and continuous precision loss.A 5 axis CNC bridge saw adopts an overall thickened heavy-duty steel structure is the best choice. The whole machine body features high rigidity and strong shock resistance. Even under 24-hour uninterrupted heavy cutting and batch profiling work, it will not deform or shake, and maintains stable processing accuracy for more than 10 years. This is the core difference between industrial-grade machines and ordinary civilian small machines.
3.7 standard DXF file import and profile copying function
Technicians only need to design various special-shaped edge drawings in advance, import DXF files into the touch screen system, the machine will automatically generate cutting path and complete full-automatic processing. It is very convenient for customized tombstone edges, irregular countertop shaping and special architectural stone processing.
3.7 Automatic tool setting and thickness detection function
Automatic Blade presetting Tool(For both blade and milling bits); Automatic Thickness Measuring Probe to meaure slab thickness automatically. The machine can automatically detect saw blade diameter and slab thickness, intelligently adjust cutting parameters, ensure every slab cutting be precise and high-efficient.
3.8 Automatic Slab Clamping System
Rotating cylinders to Press Workpieces during Milling Work to avoid slab movement during milling work
6. Safety Certification: Self-Declaration CE VS TUV Certified CE
For overseas customers, especially European market buyers, machine certification is directly related to customs clearance and factory safety inspection. At present, most small stone machinery factories only provide self-declaration CE files, which have no third-party testing and official audit.
In recent years, EU customs inspections have become increasingly strict. Many machines with self-declaration CE are detained at customs, failing to clear smoothly or pass local annual factory safety audits.
Our ZL 5 axis bridge saw has officially obtained TUV authoritative certification. The whole machine has passed strict mechanical safety test, electrical safety detection, risk assessment and third-party on-site audit. The certification is globally recognized, support smooth EU customs clearance, factory safety inspection and large engineering project bidding, bring strong safety guarantee for customer production and import business.
8. Why Our ZL 5 Axis CNC Bridge Saw Is Worth Buying

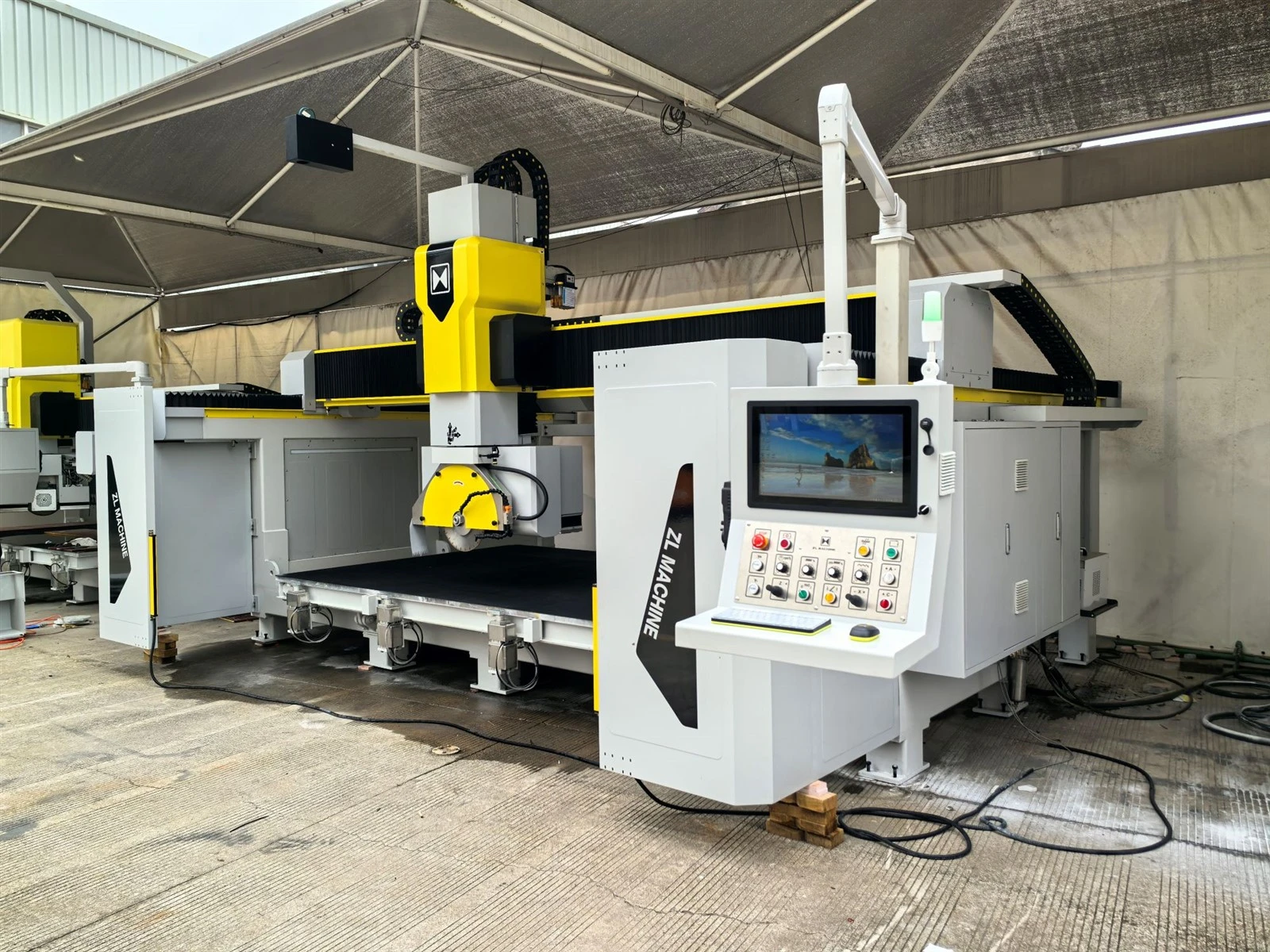

With 30 years of professional stone machinery manufacturing experience, our ZLBS-600CNC/5+1A 5 axis bridge saw is a mature industrial-grade model optimized and upgraded according to global customer production needs. Different from ordinary generic machines on the market, we focus on practical production performance and long-term stability.
It supports full 5-axis RTCP linkage, 360° rotation and 90° tilting, compatible with all kinds of complex stone processing. The extended Y-axis travel enables efficient batch tombstone edge profiling, completely solving the low-efficiency problem of traditional milling processing. The 22KW high-power variable frequency motor perfectly adapts to hard granite and sintered stone cutting, and the heavy-duty deformation-resistant body ensures long-term stable operation.
Equipped with TUV safety certification, full intelligent CNC system, industrial camera automatic positioning and DXF profile copying function, it can fully meet the needs of high-precision, high-efficiency and batch production for modern stone factories. Meanwhile, we will display our physical machine in Italy stone exhibition, customers can visit our booth to watch real machine cutting effect and know more machine details on site.
9. Our Full Lifecycle After-Sales Support
We never only sell equipment, but provide complete set of production solutions for customers. We provide 24/7 online remote technical guidance, professional parameter debugging and operation training. Free software upgrade and complete spare parts supply ensure customers have no worries in later use.
Whether you are a new factory preparing to buy the first 5 axis bridge saw, or an old factory upgrading equipment, we can provide targeted configuration suggestions according to your local stone materials, processing types and factory scale, help you choose the most suitable and cost-effective machine.
FAQ
Q1: Can 5 axis bridge saw process tombstone arc and S-shaped edges in batch?
A: Yes. Our extended Y-axis 5 axis bridge saw can fix multiple tombstones vertically, use saw blade to complete batch profile cutting, efficiency is much higher than traditional milling processing.
Q2: Is TUV certification necessary for stone machine import?
A: For EU market import, TUV certified CE is more authoritative and safer, can avoid customs detention and factory inspection failure, very suitable for long-term export business.
Q3: What stone materials can your 5 axis bridge saw process?
A: It can stably process granite, marble, quartz stone, sintered stone, ceramic stone and various artificial stone, meet countertop, tombstone and engineering stone production needs.
Q4: What is the difference between full 5-axis and 4+1 axis bridge saw?
A: Full 5-axis support real-time linkage continuous cutting, smooth curve and profiling effect. 4+1 axis can only achieve single independent movement, easy to have cutting deviation on complex shapes.
Q5: Does your machine support DXF file import and automatic cutting?
A: Yes. The machine system supports standard DXF drawing import, automatic path generation and full-automatic processing, very convenient for customized stone production.
