5+1 Axis Bridge Saw
Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of 5+1 axis bridge saw in China. Welcome to buy TUV-certified 5+1 axis bridge saw in stock here and get quotation from our factory. Quality products and reasonable price are available.
Products Parameter
|
Model |
ZLBS-500CNC/5+1A |
Unit |
|
Worktable |
Plastic worktable be faced with rubber L3500*W2000 |
mm |
|
Max. Cutting |
L3500*W2000*T120 |
mm |
|
Max.Chamfer |
L3500*W2000*T80 |
mm |
|
Cylinders |
5 |
Group |
|
X.Y. Z-axis Transmission |
X-axis adopts Taiwan Linear Guide Rail + helical rack and gear + planetary reducer. Y-axis adopts Taiwan Linear Guide Rail + helical rack and gear. Z-axis adopts Taiwan Linear Guide Rail+ Ball screw+ planetary reducer. |
|
|
C-axis Head rotate |
Head rotate 0°-360°, "ZHONGDA LEADER" Robot Reducer |
|
|
A-axis |
Head tilt 0°-90°, "ZHONGDA LEADER" Robot Reducer |
|
|
Camera brand |
Hikvision |
|
|
Blade Diameter |
350-500mm |
mm |
|
Control Center |
Quality Industry computer + RTCP CNC controller+ CNC software+Servo Motors Or optional Esa System |
|
|
Main Motor |
Self-developed 5-axis special motor 22KW(permanent magnet motor with frequency) |
|
|
Router power |
7.5 (with a G1/2 adaptor ) |
kw |
|
Servo Motor |
Yuhai Brand X: 1.5KW; Y: 1.2KW; Z: 1.5KW; A: 1.2kw; C:1.5KW |
|
|
Router Max. RPM |
15000 |
RPM |
|
Total power |
40.5 |
kw |
|
Suction cup lifting weight |
300 |
kg |
|
Dimensions |
L5750*W4150*H3450 |
mm |
|
Water consumption |
2 |
m³/h |
|
Total weight |
5.5 |
t |
|
Packing Size |
5750x2200x2600 |
mm |
|
Shipment |
Main part delivered as whole(HQ container) |
|
|
Mono-block Structure with Man-Machine interaction(√) With An Electric spindle speed:Power: 7.5 kw (with a G1/2 adaptor )(√) With A Camera, Photo layout function(√) With Automatic measuring probe for thickness (√) With An automatic Tool Setting Gauge(√) With an industrial computer and a touch-screen.(√) With Suction Cups 300kgs(√) With Auto Clamping system during Milling work(√) 22kw 5-axis special permanent magnet motor, which is 40% power saving.(√) With Automatic lubrication system (√) This Worktable can be Flipped over 85°, easy to load work pieces.(√) Vein Matching Function(√) Software upgrade for free(√) |
||


Features

The machine adopts conjoined structure; it takes up less space and is easy to install and move.
With 3500X2000mm Worktable(Steel+ PVC+Rubber Mat)

Use an durable industrial camera to locate the position of the plate, Photo Layout Function.
The camera is with an auto Cover automatically open and close to prevent dust.

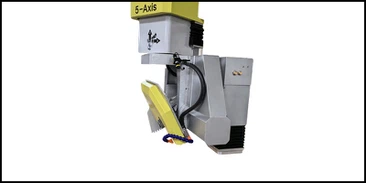

A-axis Rotate 0~90°,C-axis Rotate 0~360°

With touch-screen and clear computer interface
With Remote-Linking Support

Auto Thickness Probe

Auto Blade presetting Tool(For both blade and milling bits)

With an Electric Spindle 7.5kw, 15000rpm, Can Put Milling Bits

Suction Cups Capacity 300kgs

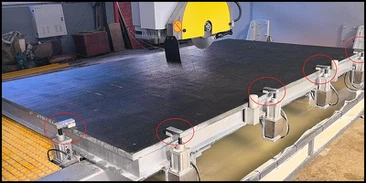

5 Groups of Rotating cylinders to Press Workpieces during Milling Work

Worktable: can be flipped up to 85°. PVC+Rubber

With 22kw permanent magnet Main motor, 40% Power Saving.
Can put a core drill for drilling faucet holes

CNC Control with .dxf file from AutoCAD
EXTRA OPTIONS




Production Sample

Working Videos:

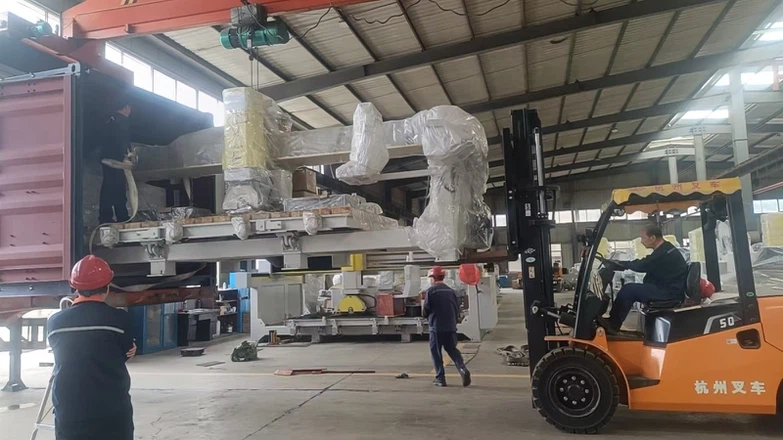

Shipment

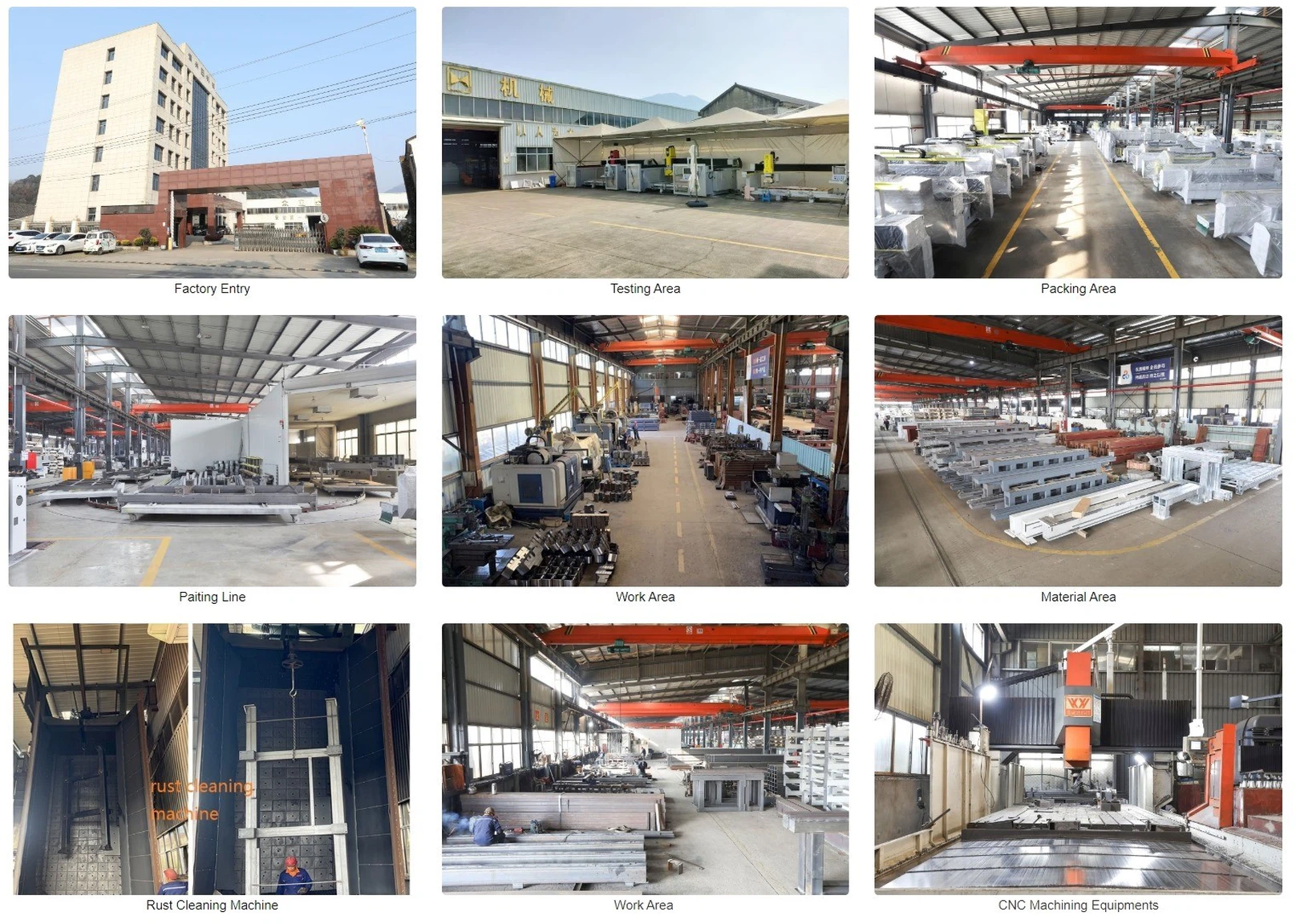

Factory
ZHONGLI MACHINERY MANUFACTURING CO., LTD. was founded in 1993, and specializes in stone machinery manufacture.
With more than 30+ years' Experience, we have become one of the Top Ten Stone Machine Brand in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)","China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc.


Certificate
TÜV certificate, Certified by TÜV Rheinland
TÜV is one of the most professional testing and certification bodies in the world, with extremely strict testing standards for industrial mechanical equipment. Different from self-declaration, TÜV certification is a third-party authoritative certification recognized by European Union and global markets.ZL Stone Machinery has completed a full round of product upgrade, safety testing and third-party auditing. our core flagship product - ZLSJ-CNC/5A (Sawjet), ZLBS-CNC/5A (5 Axis CNC Bridge Saw) and ZLCP-CNC/5A( CNC Cutting and Polishing Machine Center) has officially passed the strict testing of TÜV institution and obtained the authoritative TÜV certification.
