5 Axis CNC Bridge Saw
Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of 5 axis cnc bridge saw in China. Welcome to wholesale durable 5 axis cnc bridge saw in stock here and get quotation from our factory. Quality products and reasonable price are available.
Products Parameters
|
Model |
ZLBS-600CNC/5A(Heavy-duty) |
ZLBS-600CNC/5+1A(Heavy-duty) |
|
Worktable size |
L3500mm*W2000mm |
L3500mm*W2000 |
|
Maximum Processing |
L3500mm*W2000mm*H500mm |
L3500mm*W2000mm*H500mm |
|
Blade External Diameter |
₵350-620mm |
₵350-620mm |
|
Control center |
An Industry computer with CNC System |
An Industry computer with CNC System |
|
Driving motor |
Servo motor |
Servo motor |
|
Main motor power |
22kw (permanet magnet motor with frequency) |
22kw (permanet magnet motor with frequency) |
|
Main Motor Spindle type |
Can be put a drill |
Can be put a drill |
| Electric Spindle | / |
Rotating speed: 0-24000 rpm
It's for Faucet-hole-drilling, inner corner milling etc. for Worktops, Vanity Tops... |
|
Total power |
30kw |
35kw |
| X,Y, Z-axis Guide Rail |
Y axis, Z axis: Heavy Duty #35 Guide Rail for heavy loads X axis: #30 Qulity Guide Rail |
Y axis, Z axis: Heavy Duty #35 Guide Rail for heavy loads X axis: #30 Qulity Guide Rail |
|
C-axis Rotate |
0°~360° |
0°~360° |
|
A-axis Rotate |
0°~90° |
0°~90° |
|
worktable flip |
85° |
85° |
| Side Beams |
Welding Steel with 3 layers Metallic Paint (Welding Steel can be better processed by high-precision machine tool, and 3 layers Metallic Paint can avoid machine from rusting) |
Welding Steel with 3 layers Metallic Paint (Welding Steel can be better processed by high-precision machine tool, and 3 layers Metallic Paint can avoid machine from rusting) |
|
Water consumption |
2m³/h |
2m³/ h |
|
Total weight |
6 tons |
6 tons |
|
Dimensions |
L5750mm*W3750mm*H4000mm |
L5750mm*W3750mm*H4000mm |
|
Delivered dimensions |
L5750mmxW2200mmxH2600mm |
L5750mmxW2200mmxH2600mm |
|
|
||

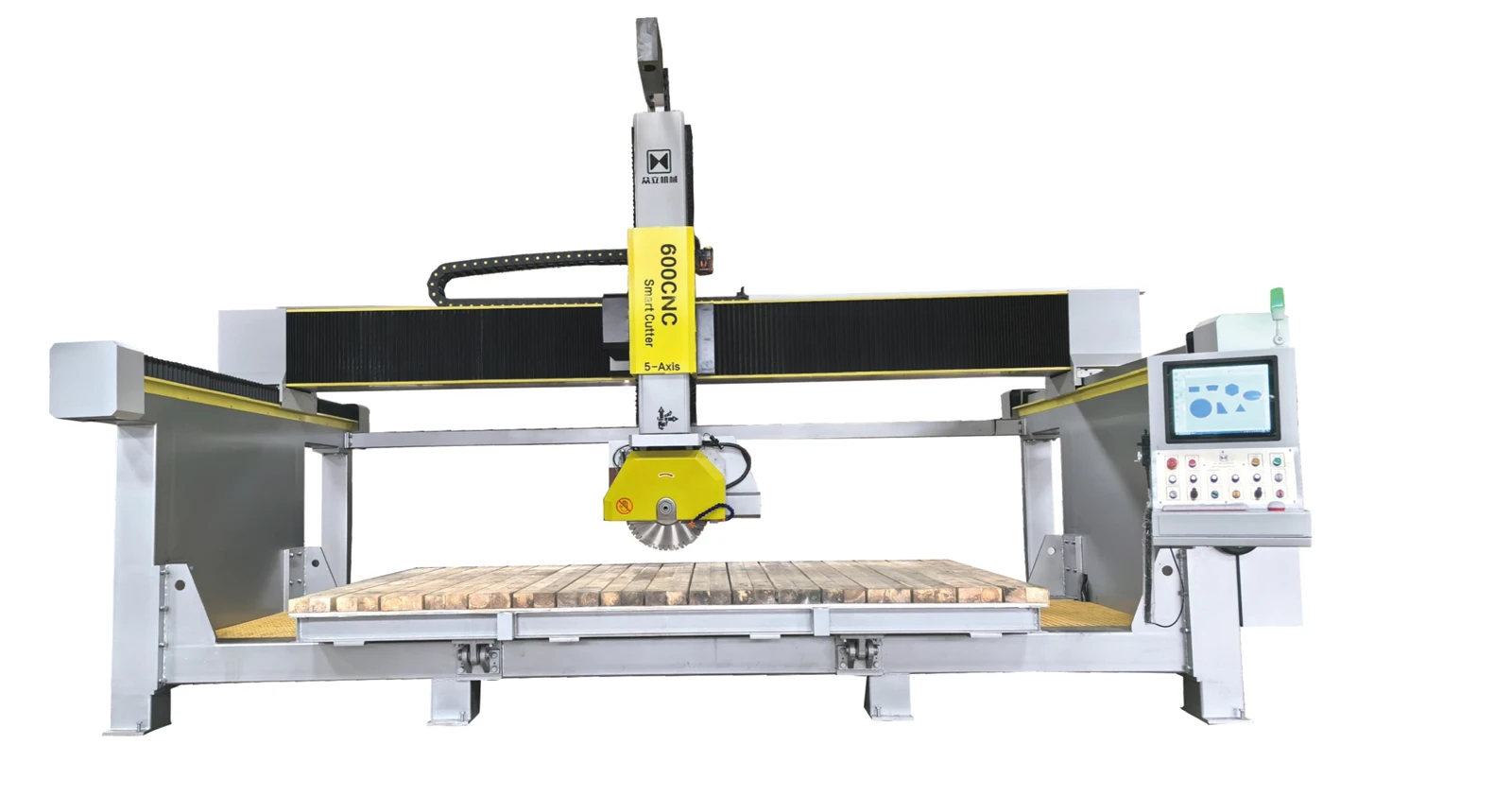

Classic Look:

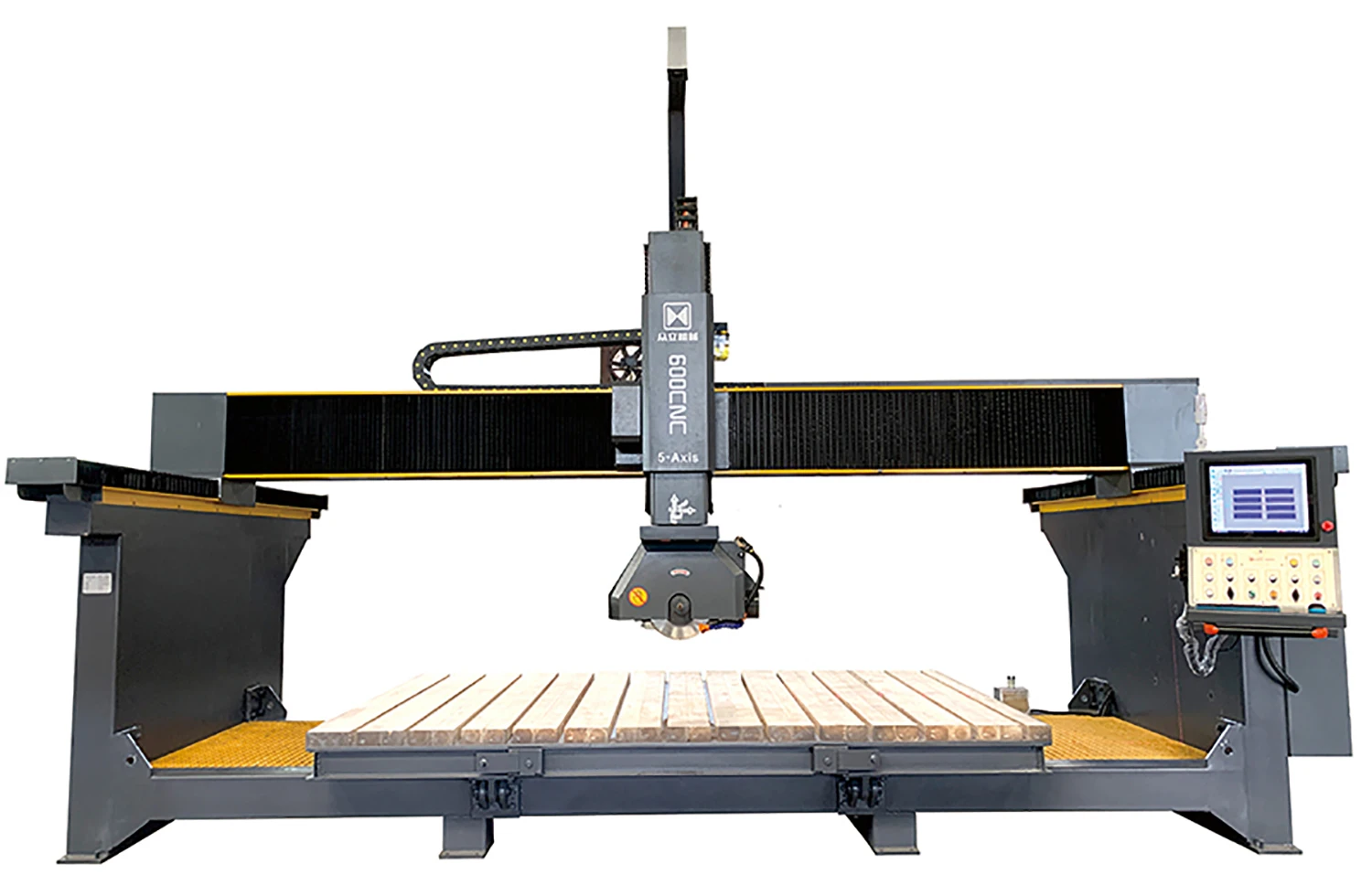

New Look:
Quotation
|
Option: (System)
1. CNC System(CutCam) 2. ESA |
Option: Equipt electric spindle with rotation speed 24000 rpm |
Option: The Chassis can be hot-dip galvanized |
Option: Add front sliding doors |
Option: Worktable can be faced with plastic plate and rubber |
Features
oWhat are the Features of 5 Axis CNC Bridge Saw?
01
#35 Guide Rail
It is a heavy-duty machine.
It adopts #35 Guide Rail for Y axis and Z axis, enables production for maximum 17cm Granite slabs.
(For processing Thick granite slabs, 35mm Guide Rail is a safer choice, which ensures the long lifetime of the machine. )
It's a one-piece Machine, easy to install and move, and takes up less space.
02

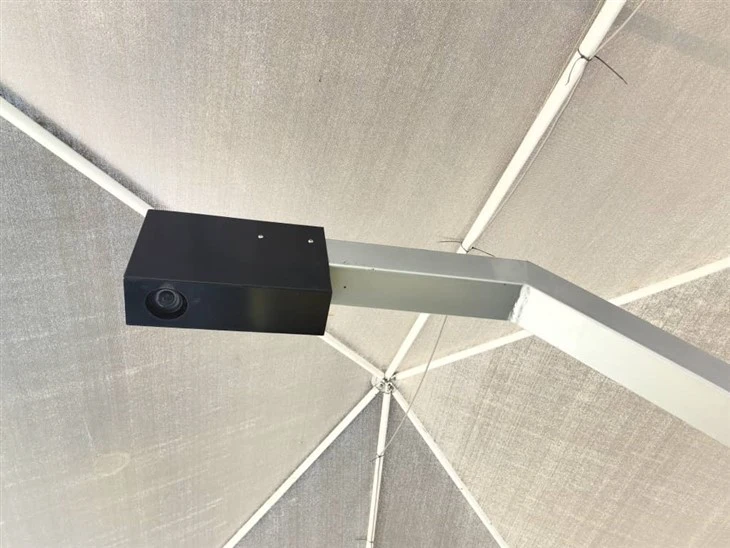

With A Camera to Locate the Position
This Machine equipt a high-precision camera to locate the position of the plate and show the cutting procedure.
The machine is equipped measuring probe for thickness, together With the image caught by the camera, the machine can calculate the size of the slabs automatically. It saves human labour and increase working efficiency.
03

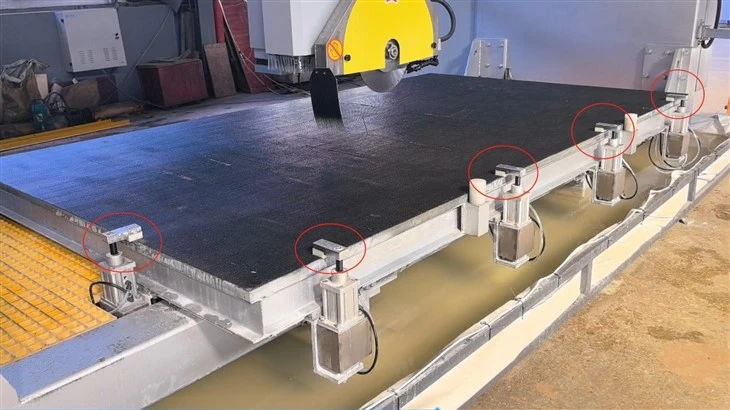

Worktable Turnover 85°
This worktable can be turned over 85° for easy loading stones.
04

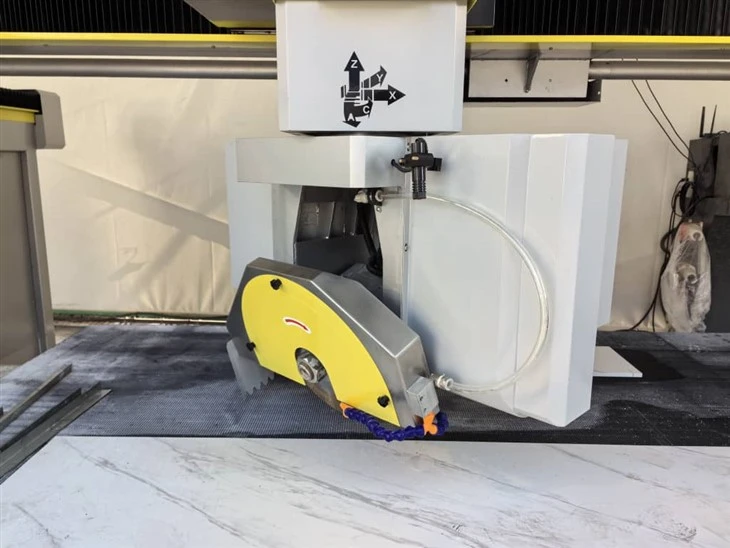

Machine Head tilt 0°-90°, rotate 0°-360°
The A axis can automatically rotate 0~90°, while the C axis can automatically rotate 0~360°.
05
Four-Side Chamfering
This machine can do four-side chamfering, with Maximum chamfering size: 3500x2000mm.
Even big size slabs can be processed easily.
06

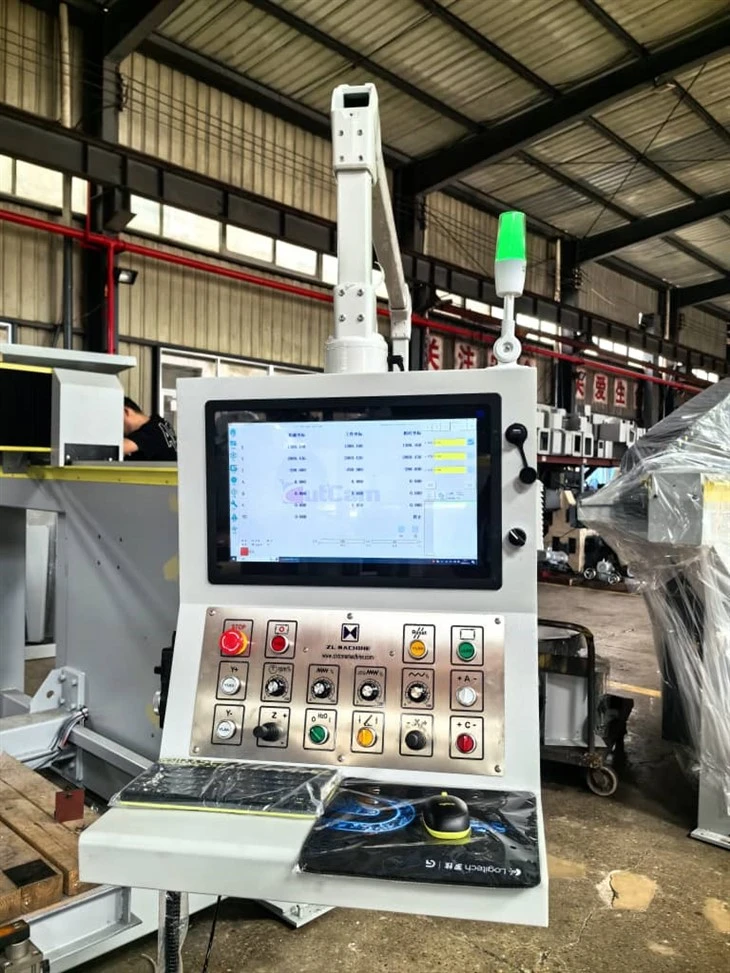

With 17" Color Touch-Screen
This Machine has an industrial computer and a 17" color touch-screen. Operators can process various forms of chamfering and 3D shaping, such as arc line shaping and wave line shaping , with the function of photo layout.
07
With CNC System and a Built-in Library
CutCam CNC System has a built-in drawing library of conventional shapes, supporting data input, and DXF format Files. The computer host comes with CAD drawing software.
08

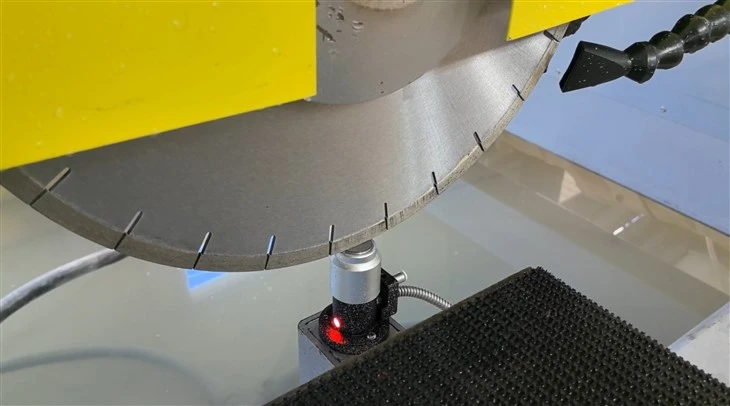

With Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade.
It ensures high-precision Production.
09
With Suction Cups
This machine can work out the best cutting solutions according to the design drawings. If the cutting paths conflicts with each other, the suction cups can help to move slabs automatically.
It enables complete automatic Production.
10
With a 22-KW Permanent Magnet Motor
This Machine has a 22kw Permanent Magnet Motor
It can automatically adjust the output power, strength, and is power-saving and environmental friendly.
Working Videos
How Does 5 Axis CNC Bridge Saw Works?
A 5 Axis CNC Bridge Saw is controlled by CNC System and driven by main motor & Servo Motors.
It's an automatic Machine, operators can operate it through an industrial computer. It's a fully Automatic Machine, after taking a picture and applying the design sketch to the system, the machinery will start working automatically.
Application Pictures
What Can 5 Axis CNC Bridge Saw Do?
- Bevel Cut, Straight Cut
- Cut various of shapes: Circle, Square, Rectangle...
- Line Shaping: Arc-Line Shaping, Straight-Line Shaping...
- Mill non-slip grooves, Slotting
- Sink Processing: drill faucet Holes, or mill inner corner for Kitchen sink(ZLBS-600CNC/5+1A)
- Concave-convex cut
Shipment
Factory Show
ZL Machine was founded in 1993, and specializes in stone machine manufacture.
After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.
Honours
Q: What is the MOQ of your machine?
Q: Can you make Sample production according to my Design Drawings?
A: Chinese, English, Russian, Spanish, Arabic language, etc. according to your requirement.
A: Our factory has been in stone machine business for 30 years with a lot of invention patents. Since 2005, we have been one of the top ten brands of stone machinery in China. Since we are located in the most advantageous production area in China, our product cost is relatively low, and the technology is mature, so we can provide high-quality products at a very favorable price.
Q: Can I become a distributor?
A: Yes, we are looking for distributors around the world.
Hot Tags: 5 axis CNC bridge saw, China 5 axis CNC bridge saw manufacturers, suppliers, factory
