Name: China 4 Axis PLC Control Bridge Saw Manufacturers Suppliers Factory - Zhongli Machinery
Brand: ZhongLi
SKU: 291182194

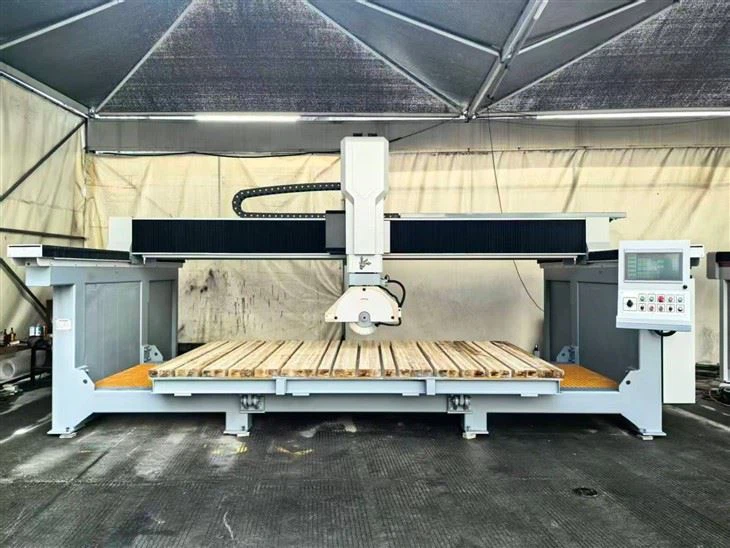

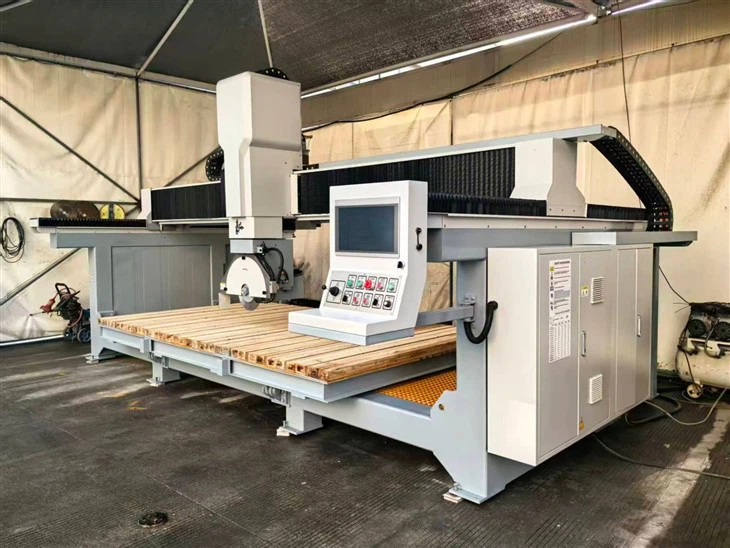

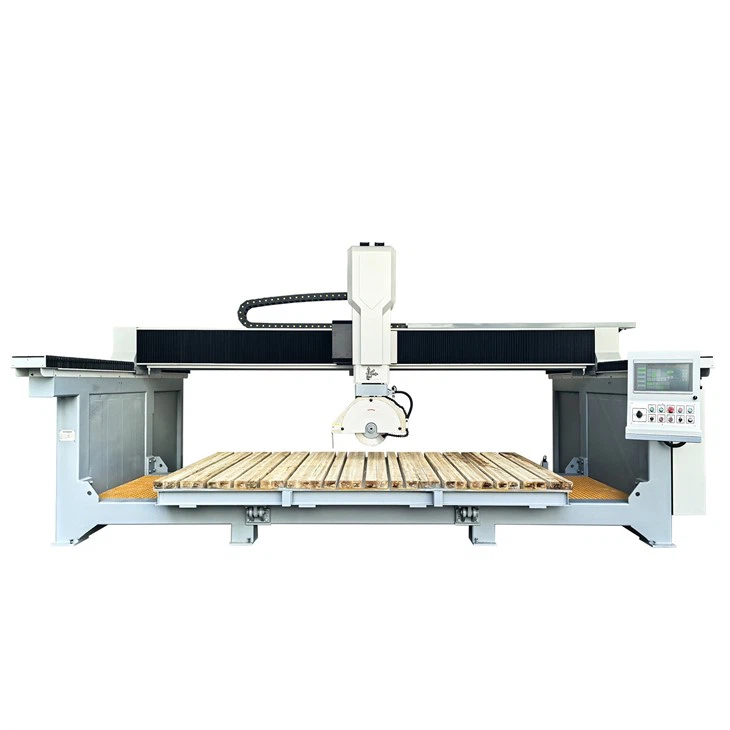

4 Axis PLC Control Bridge Saw, Type:ZLBS-500CNC/4A, accept Max.500mm Saw Blade Diameter, is for processing Marble, Granite, Porcelain and Quartz stones. It's a PLC Control Machine with easy operation.It has big worktable: 3500X2000mm, and has a standard 22KW permanent magnet motor,which is powerful and 40% power savings than normal ones. It has a shape library including strips, circle, square, Fan shape, counter Top, rounded rectangle, Ellipse, Trapezoid, etc. We provide OEM/ODM service.

Send Inquiry

Product Introduction

Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of 4 axis plc control bridge saw in China. Welcome to wholesale durable 4 axis plc control bridge saw in stock here and get quotation from our factory. Quality products and reasonable price are available.

Products Parameter

Model	ZLBS-500CNC/4A	Unit
Worktable size	L3500*W2000(wood table)	mm
Z-axis travel	300	mm
C-axis Head rotate	Head rotate 0°-360°, "ZHONGDA LEADER" Robot Reducer
A-axis	Head tilt 0°and 46°
X.Y. Z-axis Transmission	X-axis adopts Taiwan #30 Linear Guide Rail + helical rack and gear + planetary reducer. Y-axis adopts Taiwan #30 Linear Guide Rail + helical rack and gear. Z-axis adopts Taiwan #30 Linear Guide Rail+ Ball screw+ planetary reducer.
Blade diameter	350-500mm	mm
Control System	PLC with motion controller, ZL-Cut Program, 15 inch touch screen
Main motor	22KW permanent magnet motor With a frequency, max 4,000 RPM	kw
Total power	30	kw
Dimensions	L5750W4150H3500	mm
Water consumption	2	m³/h
Total weight	4.5	t
Main part delivered size	5750x2200x2500	mm
Machine delivered method	Main part delivered as whole(HQ container)
Automatic Tool Setting Gauge(√) Automatic lubrication system (√) Drawing function(√) Software upgrade for free for life-time(√)

1500X1500 1 -

1500X1500 2 -

Software Screenshot

Production Sample

Working Videos:

Shipment

Package

Factory

ZHONGLI MACHINERY MANUFACTURING CO., LTD. was founded in 1993, and specializes in stone machinery manufacture.

With more than 30+ years' Experience, we have become one of the Top Ten Stone Machine Brand in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)","China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc.

product-1616-1152

Version2 -

Certificate

ZHONGLI's Honors come from its Strength and efforts. They represent our excellent development and unremitting efforts in stone machinery industry. We will transform every honor into continuous development and innovations again and again.

zhongli CE

gai

product-1200-601

FAQ

Q: Where is your factory located ? How can I visit it ?

A: Our factory is located in Taizhou city,Zhejiang province,China. After you reach local airport or high-way Station, we will pick you up.

Q: This is the first time I buy the machine, is it easy to operate?

A: This Machine is easy-operated even for new beginners, and we will provide the operation manual&video, together with free online service.

Q: Why Choose Us?

A: Our factory has been in stone machine business for 30 years with a lot of invention patents. Since 2005, we have been one of the top ten brands of stone machinery in China. Since we are located in the most advantageous production area in China, our product cost is relatively low, and the technology is mature, so we can provide high-quality products at a very favorable price.
