Name: China Stone Surface CNC Grinding Machine Manufacturers Suppliers Factory - Zhongli Machinery
Brand: ZhongLi
SKU: 309825680

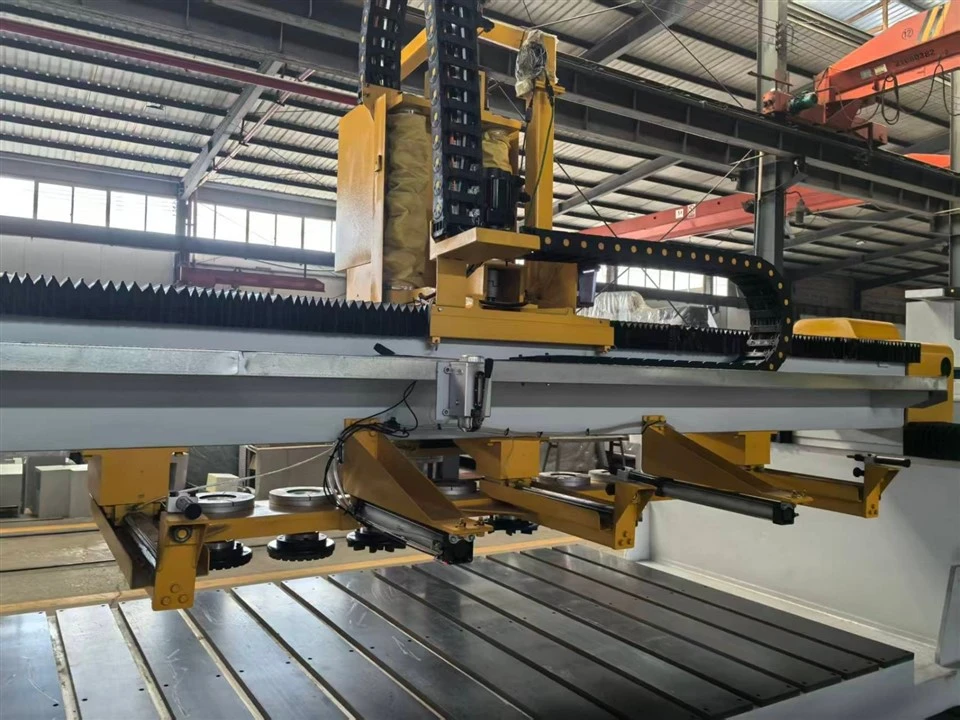

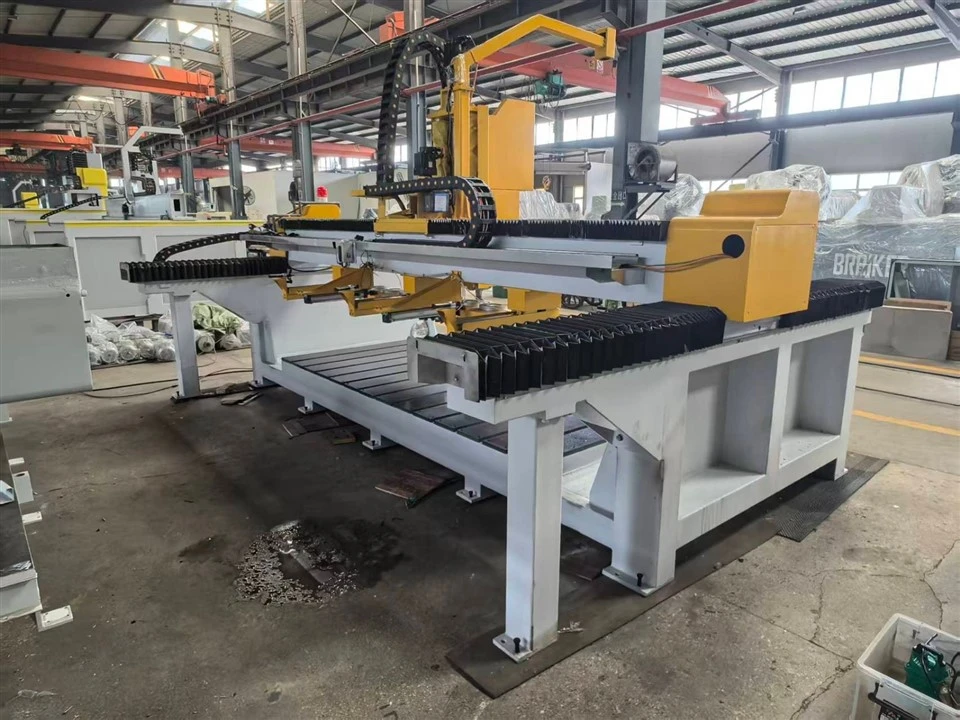

The ZLMP-8-(3622) Automatic Tool-Changing CNC Stone Surface Polishing Machine is a high-precision, multi-functional intelligent stone processing equipment independently developed for diversified stone surface finishing needs. Capable of producing matte, glossy, and bush hammer surface textures, this machine delivers versatile polishing and texturing effects for various stone materials. It is widely applicable for customized processing of kitchen countertops, tombstones, and all kinds of stone decorative panels, serving the personalized and high-precision production demands of the stone processing industry.

Send Inquiry

Product Introduction

Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of stone surface cnc grinding machine in China. Welcome to wholesale durable stone surface cnc grinding machine in stock here and get quotation from our factory. Quality products and reasonable price are available.

Products Parameter

Model	Unit	ZLMP-8
Worktable size	mm	L3600*W2200
X/Y/Z Working travel	mm	X:3800Y:2600Z:600
Processing thickness	mm	T10-400
Polishing Disc diameter	mm	₵200-300
Polishing Disc Magazine Layout		Thickness Measurement ×1 + Marble Polishing Heads ×8 + Brush head ×1
Optional Polishing Disc Magazine Layout		Granite Polishing Heads ×8 + Bush-Hammered Head ×1 + Spare Tool ×1
Main motor power	kw	7.5
Total power	kw	13.5
Dimensions	mm	L5600W4000H3200
Water consumption	m³/h	3
Air pressure required	bar	6-7
Water pressure required	bar	2-3
Total weight	t	5
Optional 1: front sliding doors Optional 2: sealed electrical box, and with an air condition

1 2

Features

1：CNC Control System

The machine is CNC controlled, with a touch-screen industrial computer, enabling Wifi Connection, remote-control function, thus our technicians can transfer files, update software, and do troubleshooting for customers easily.

2: Visual image positioning system

High-definition 20-megapixel visual image positioning system can automatically identify and position the outline of the boards on the worktable, allowing multiple boards to be placed freely at the same time and processed simultaneously after image positioning.

3：Automatic-Tool-Change Grinding Heads

It adopts a 10-position magazine for grinding heads, allowing users to freely select various grinding heads for different types of stone slabs (An additional 10-position magazine is optional.)

4：Automatic slab thickness measurement.

5: Three different polishing cylinder pressure settings can be freely selected in the software to suit stone slabs with different material characteristics.

Production Video

Factory

ZHONGLI MACHINERY MANUFACTURING CO., LTD. was founded in 1993, and specializes in stone machinery manufacture.

With more than 30+ years' Experience, we have become one of the Top Ten Stone Machine Brand in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)","China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc.
