Name: China Marble Bridge Saw Manufacturers Suppliers Factory - TUV-certified Marble Bridge Saw - Zhongli
Brand: ZhongLi
SKU: 210390515

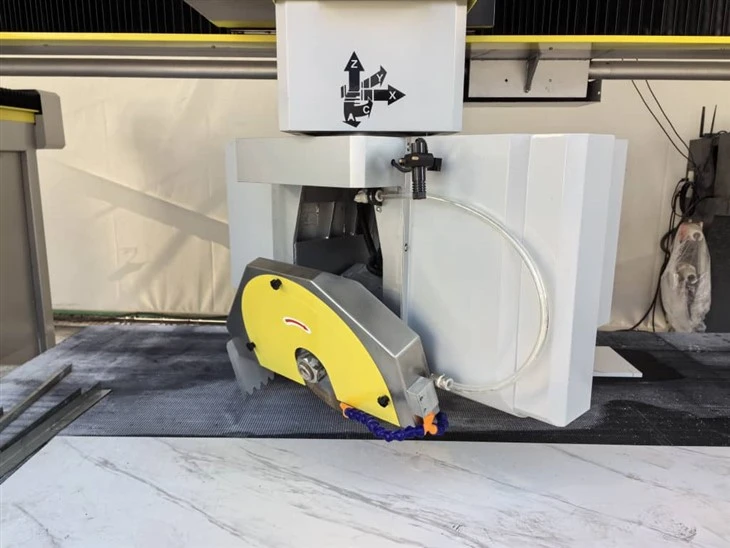

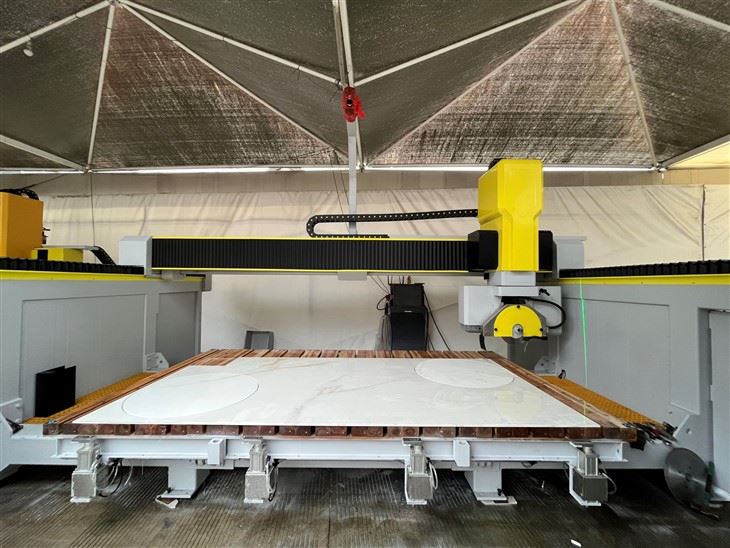

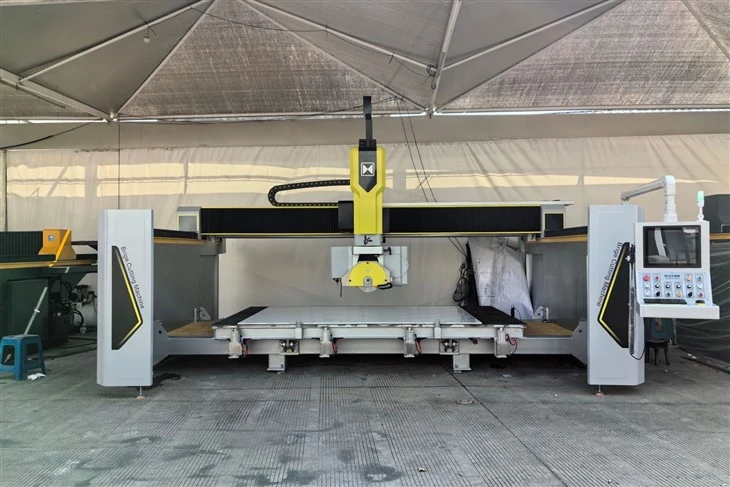

Marble Bridge Saw, Model: ZLBS-425CNC is a Stone Bridge Saw for Stone CNC Cutting, this machine has various functions of Stone Processing, such as Cutting, Milling, Shaping, Drilling etc. This Machine has high speed and precise Performance, is a good bridge cutting machine for Marble, Porceline, Granite, Dekton...

Send Inquiry

Product Introduction

Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of marble bridge saw in China. Welcome to buy TUV-certified marble bridge saw in stock here and get quotation from our factory. Quality products and reasonable price are available.

Products Parameter

Standard Type :

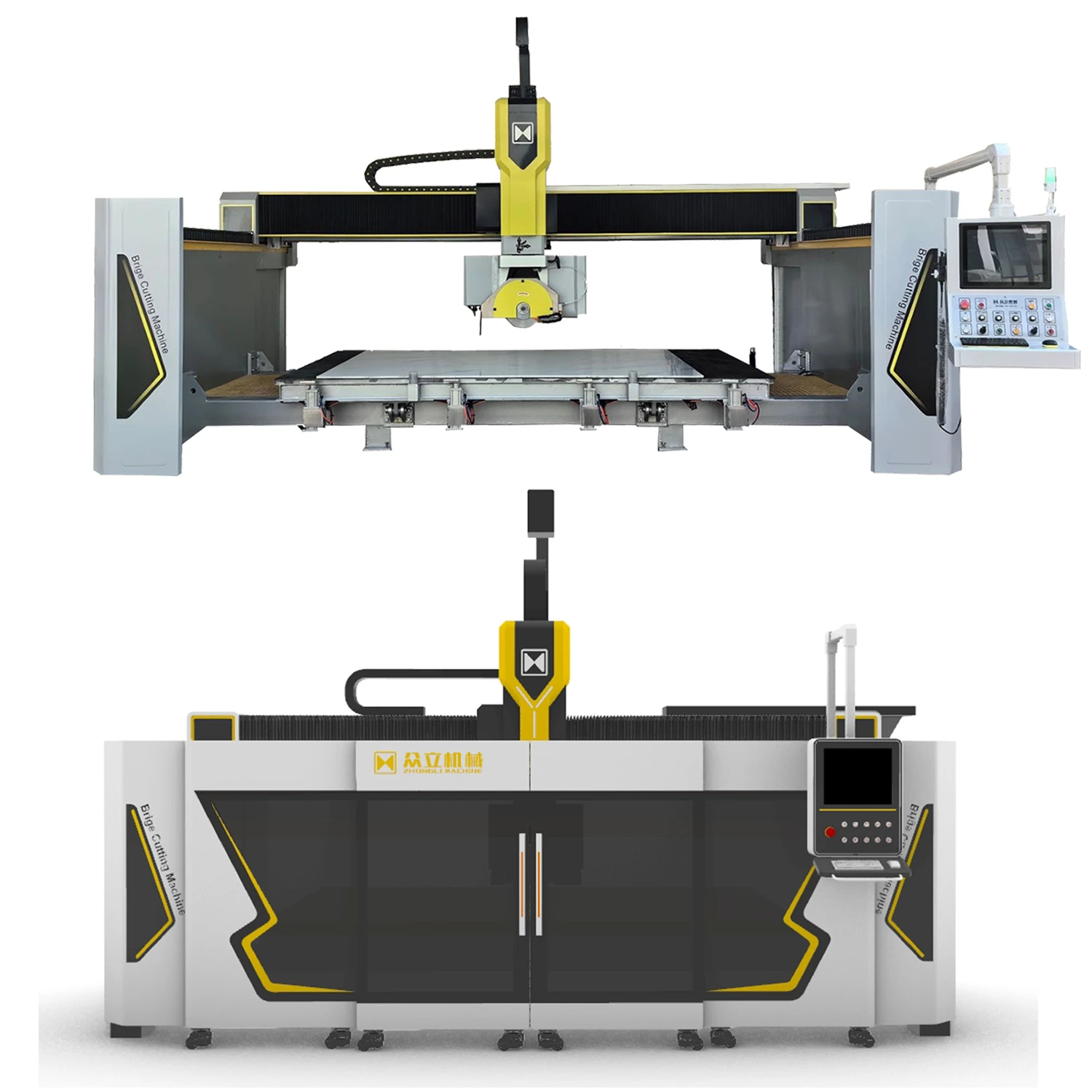

Model	ZLBS-425CNC/4+1A (4 Axis Bridge Saw )	ZLBS-425CNC/5+1A (5 Axis Bridge Saw )
Worktable size	L3500*W2000mm	L3500*W2000mm
Max. cutting	L3500W2000H90mm	L3500W2000H90mm
Max. chamfering	L3500W2000H60mm	L3500W2000H60mm
Blade diameter	350-425mm	350-425mm
Main motor power	15KW	22 KW(Self-developed 5-axis special motor, permanet magnet motor with frequency), It can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection, which is 40% power saving.
Router power	5.5KW	5.5KW

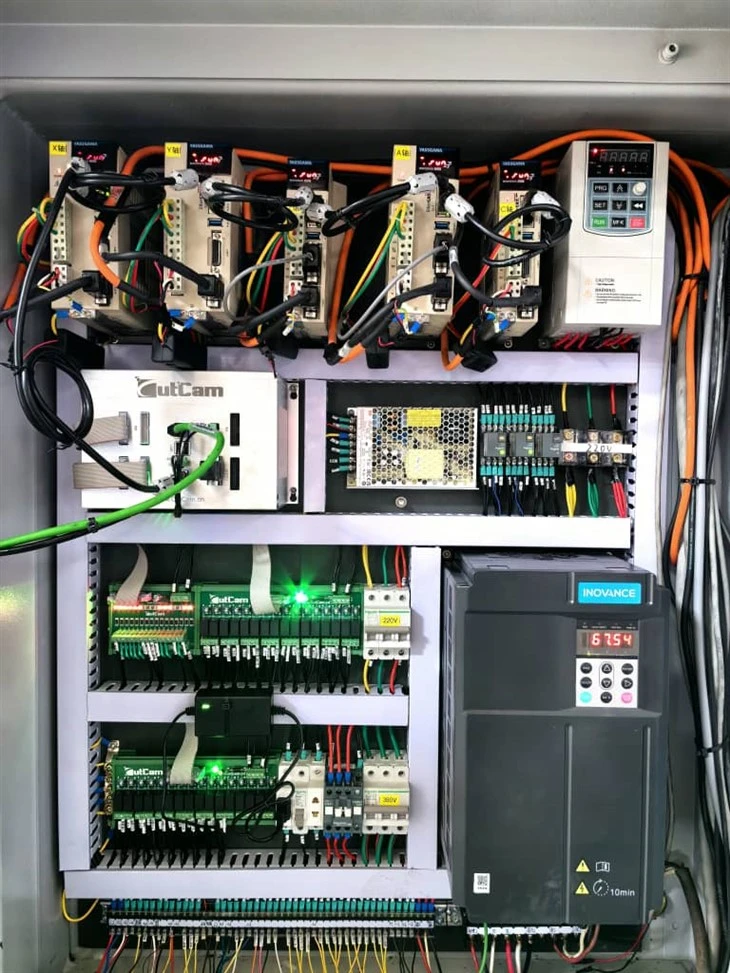

Control center	industry computer with CNC	industry computer with CNC
Controller brand	"Cut Cam" CNC System	"Cut Cam" CNC System or ESA system
Driving motor	Servo motor	Servo motor
Router max speed	24000RPM	24000RPM
Total power	28kw	35kw
Suction cup lifting weight	200kgs	200kgs
Head rotate	0°~360°	0°~360°
Head tilt	0°and 45°	0°~90°
Cylinders	5 Groups	5 Groups
Dimensions	L5750W4150H3450mm	L5750W4150H3450mm
Water consumption	2m³/h	2m³/h

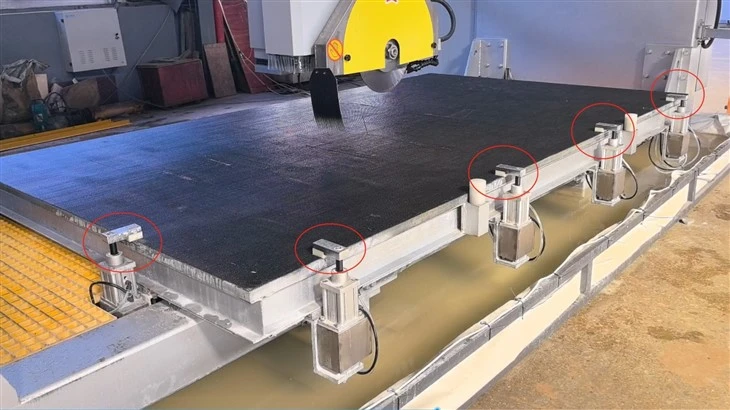

Woktable	Wood Worktable, can tilt 85 degree	Wood Worktable, can tilt 85 degree
Total weight	5.4 tons	5.4 tons
Main part delivered size	5750X2200x2600mm	5750X2200x2600mm
Machine-delivered method	Main part delivered as a whole (40 HQ container)	Main part delivered as a whole (40 HQ container)

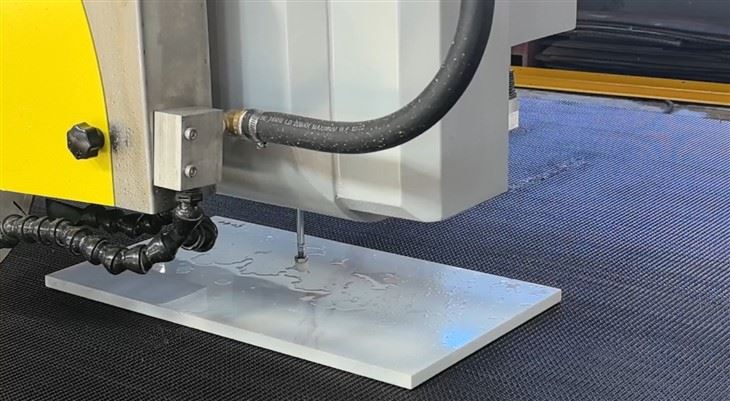

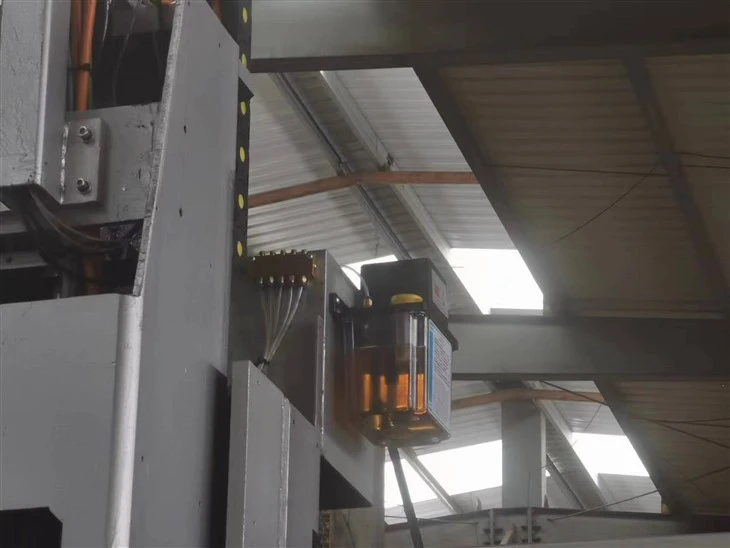

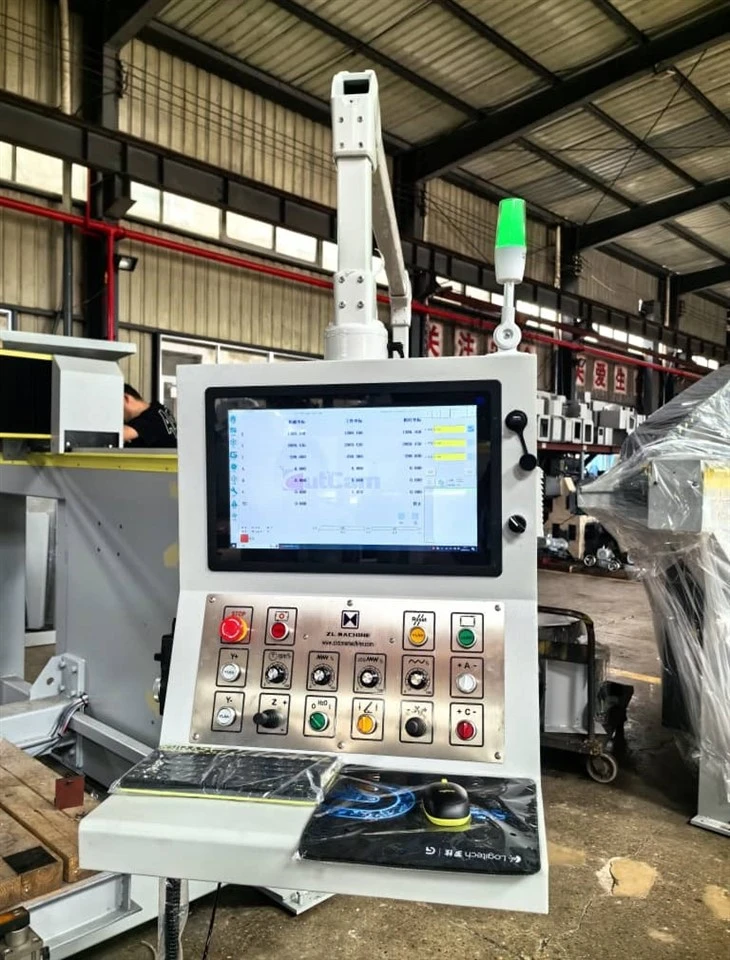

Features	One-Piece Machina, Main Part Be Shipped As a Whole, Easy Installation. With Excellent Four-Side Chamfering Range 3500x2000mm With Photo Layout Funtion By Camera DXF File Importing Function With Automatic measuring probe for thickness (√) With Automatic Tool Setting Gauge(√) With Automatic lubrication system (√) With Electric spindle speed:24000rpm (√) With A Camera, Camera layout function(√) With an industrial computer and a 17" color touch-screen. Drawing function(√) With Suction Cups(√) Software upgrate for free for life-time With A Group of Rotating Cylinders to press piecework during millingwork(√) Vein Matching Function(√)
