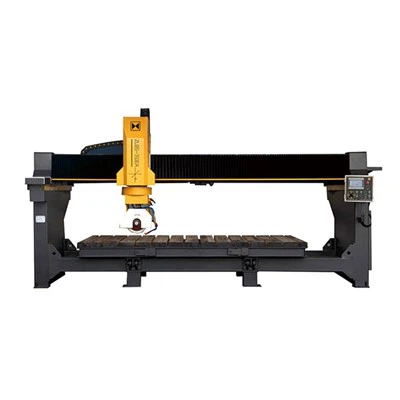

4 Axis CNC Bridge Saw

Name: 4 Axis CNC Bridge Saw - China 4 Axis CNC Bridge Saw Manufacturers Suppliers Factory - Zhongli Machinery
Brand: ZhongLi
SKU: 210388605

We supply 4 Axis CNC Bridge Saws,type ZLBS-425CNC/(4+1)A, for processing marble, granite, porcelain, and quartz stone countertops. It's a easy-to-use Smart Stone Cutting Machine, adopted Suction Cups, Camera, Automatic Measuring Tools, touch screen, Automatic oiling system etc.C-axis can rotate 0~360°,A-axis can rotate 0°and 45°.It's a specialized stone machine for furnishing.

Send Inquiry

Product Introduction

Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of 4 axis cnc bridge saw in China. Welcome to wholesale durable 4 axis cnc bridge saw in stock here and get quotation from our factory. Quality products and reasonable price are available.

Products Parameters

Model	4 Axis CNC bridge saw	Unit
Worktable size	L3500*W2000, Wood Worktable, can be flipped up to 85°	mm
Maximum cutting	L3500W2000H90	mm
Maximum chamfering	L3500W2000H60	mm
Blade diameter	350-425	mm
Main motor power	Self-developed 4-axis special motor, 15kw	kw
Router power	5.5	kw
Control center	industry computer with CNC
Driving motor	Servo motor
Router max speed	24000	RPM
Total power	28	kw
Suction cup lifting weight	200	kg
C-axis	Head rotate 0°-360°, "ZHONGDA LEADER" Robot Reducer
A-axis	Tilt 0°and 45°
Camera Brand	Hikvison
Cylinders	5	group
Dimensions	L5750W3260H3500	mm
Water consumption	2	m³/h
Total weight	5.4	t
Main part delivered size	5750x2200x2500	mm
Machine-delivered method	40 HQ container
Chamfering Range: 3500x2000mm AutoBlade Presetting Gauge Auto Oiling system With Electric spindle speed:24000rpm With A Camera, Camera layout function With 17" color touch-screen. Drawing function With Vacuum Lifter, capacity 200kgs With Auto Clamping system to press piecework during millingwork Vein Matching Function by CNC System Worktable can flip 85 degree

425 CNC 157k

Quotation

Price: (USD): $26,000~$30,000

Option: Hot Galvanized (USD)

Option: worktable be faced with rubber

Contact now

Features

1. Chamfering Range: 3500x2000mm

2. Auto Blade Presetting Gauge

3. Auto Oiling system

4. With Electric spindle speed:24000rpm

6 -

5. With A Camera, Camera layout function

6.With 17" color touch-screen. CNC System

7. Photo Layout Function, Auto Processing

7.With Vacuum Lifter, capacity 200kgs

8.With Auto Clamping system to press piecework during milling work

9. Worktable can flip 85 degree

10. Vein Matching Function by CNC System

Application Picture and Video

Countertop

20240112111848d0d7e

Shipment

Factory

Honour

gai

product-1200-601

FAQ

Q: Can you make Sample production according to my requirement?

A: Of Course. You can send us the design Drawing, we'll produce a sample and take a video for you.

Q: Where is your factory located ? How can I visit it ?

A: Our factory is located in Taizhou city,Zhejiang province,China. After you reach local airport or high-way Station, we will pick you up.

Q: What is your MOQ of your machine?

A: Our MOQ is 1 set.

Q: How long is the production time?

A: It generally takes 40 days

Q: This is the first time I buy the machine, is it easy to operate?

A: This Machine is easy-operated even for new beginners, and we will provide the operation manual&video. We also provide free online service.

Q: Why Choose Us?

A: Our factory has been in stone machine business for 30 years with a lot of invention patents. Since 2005, we have been one of the top ten brands of stone machinery in China. We have sold more than 50,000 units of machines and won widely known reputation. Since we are located in the most advantageous production area in China, our product cost is relatively low, and the technology is mature, so we can provide high-quality products at a very favorable price.
