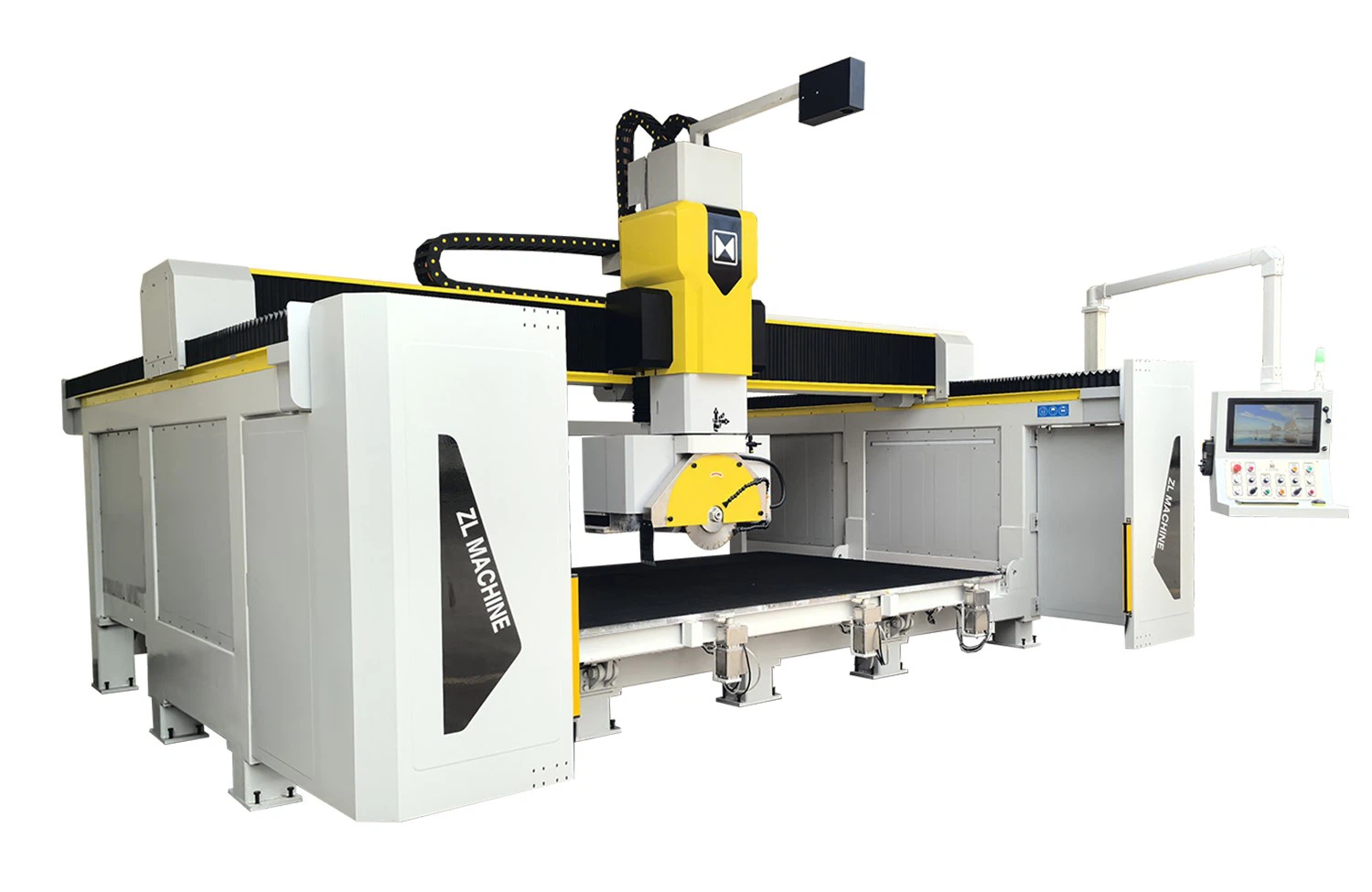

5 Axis Bridge Saw Machine

Name: China 5 Axis Bridge Saw Machine Manufacturers Suppliers Factory - Buy 5 Axis Bridge Saw Machine in Stock - Zhongli Machinery
Brand: ZhongLi
SKU: 210387546

5 axis CNC bridge saw, Type:ZLBS-600CNC/5+1A, accept Max.600mm Saw Blade. Max. Cutting thickness to be 15cm. It's for bigger thickness work of Granite, Marble, quartz, Artificial Stone, Sintered Stone porcelain, etc. A Camera is equiped to position Plates automatically and help calculate the size of workpieces. The Machine Head can rotate 0~360°, Tilt 0~90°, enable Processing at various Angles and directions. It adopts CNC system, together with an industrial Computer, makes stone Production totally automatic. Operators can Cutting stone easily. As it's such an user-friendly machine, it gains growing popularity in building industry, home decoration industry, etc.

Send Inquiry

Product Introduction

Products Parameter

Model	ZLBS-600CNC/5+1A(New)	Unit
Worktable	Plastic worktable be faced with rubber L3700*W2300(1800 Flippable+500Fixed)	mm
Max.Cutting	*L3700W2300T170*	mm
Max.Chamfering	L3500W2300T120	mm
Cylinders	5	Group
X.Y. Z-axis Transmission	X-axis adopts Taiwan Linear Guide Rail + helical rack and gear + planetary reducer. Y-axis adopts Taiwan Linear Guide Rail + helical rack and gear. Z-axis adopts Taiwan Linear Guide Rail+ Ball screw+ planetary reducer.
X axis speed	50	m/min
Y axis speed	35	m/min
Z axis speed	6	m/min
C-axis Head rotate	Head rotate 0°-360°,"ZHONGDA LEADER" Robot Reducer
A-axis	Head tilt 0°-90°,"ZHONGDA LEADER" Robot Reducer
Camera brand	Hikvison
Blade Diameter	350-625mm	mm

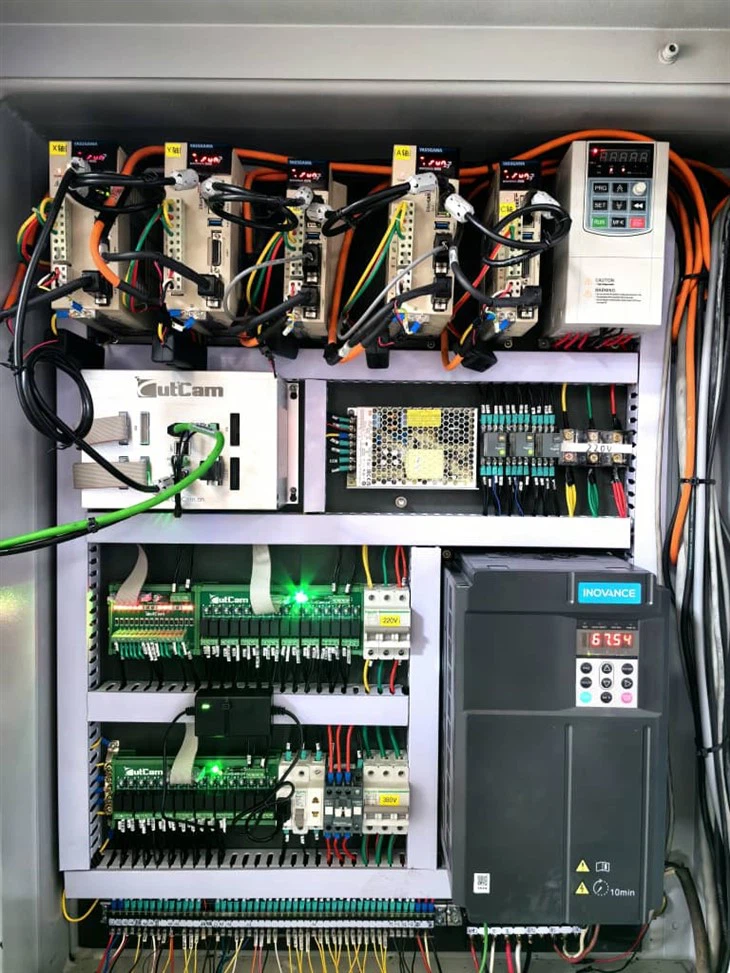

Control Center	Option 1: Quality Industry computer + RTCP CNC controller+ CNC software(Cut Cam) + YUHAI Servo Motor Option 2: Esa System
Main Motor	Self-developed 5-axis special motor 22KW(permanet magnet motor with frequency) with Inner water spindle
Router power	7.5	kw
Router Max. RPM	15000	RPM
Main motor	22kw Permanent Magnet Main Motor, Inner-water Cooling	kw
Total power	40.75	kg
Suction cup lifting weight	500	mm
Dimensions	L5850W4680H3560	m³/h
Dimensions with Front Sliding Door(Optional)	L6230W4980H3560
Water consumption	2	t
Total weight	7.5(with front door 8 tons)	mm
Main part delivered size	5750x2200x2600
Shipment	Main part delivered as whole(HQ container)

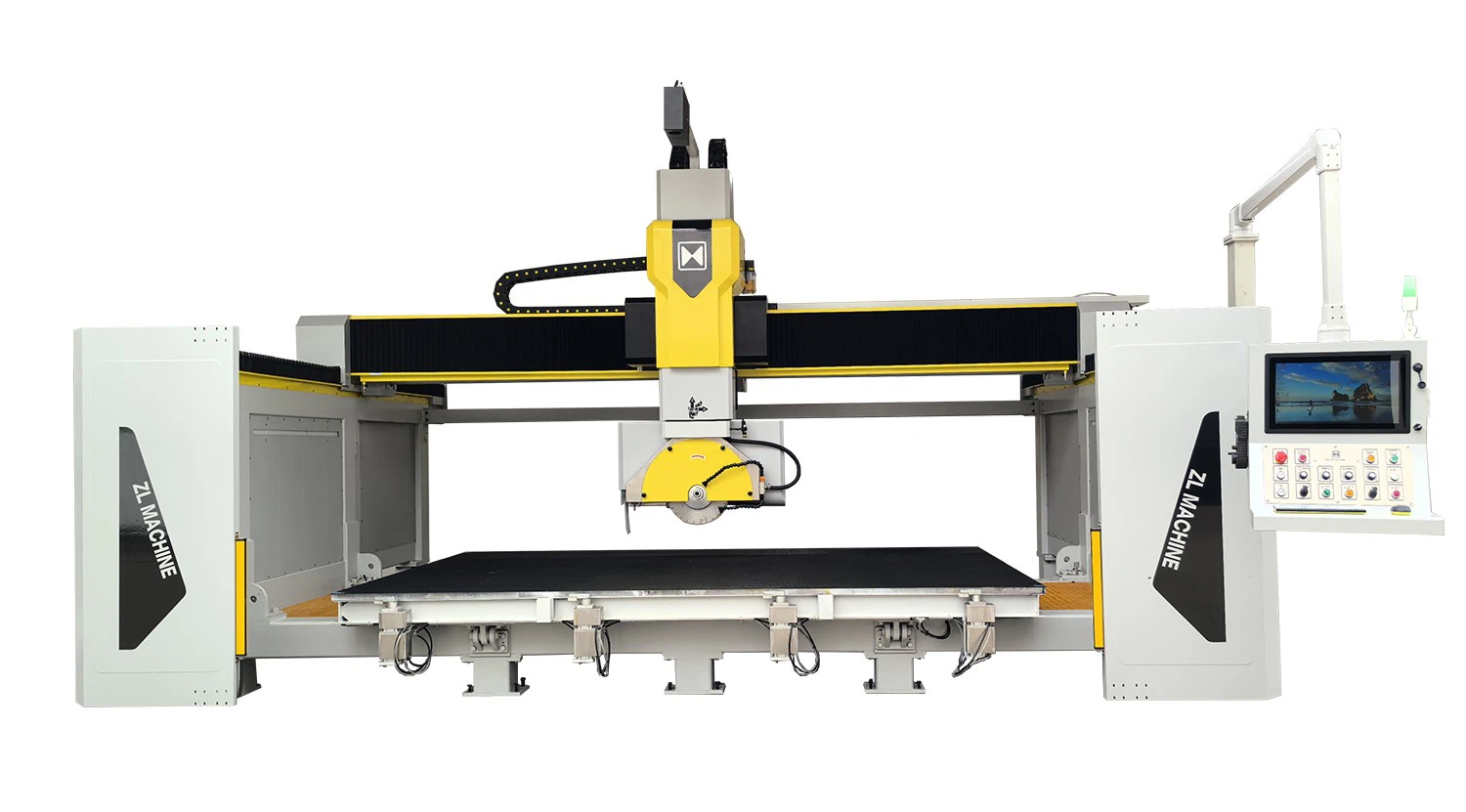

1500X1500 2

1500X1500

Features

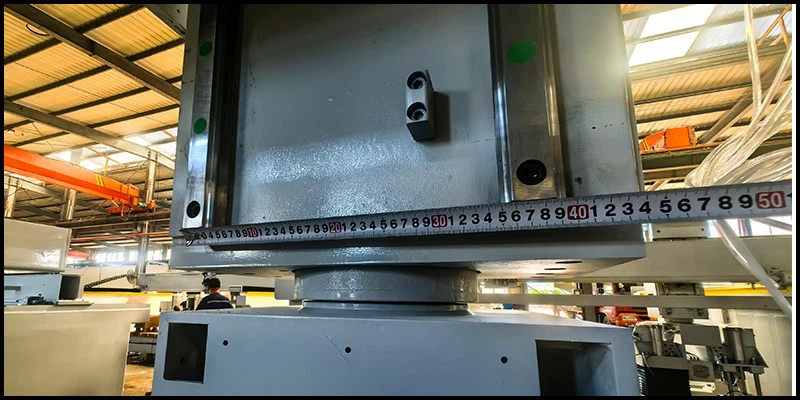

The Machine has an heavy duty Beam. And its Head Adopts #45 Guide Rail , Big width between Guide Rails, rigid and stable.

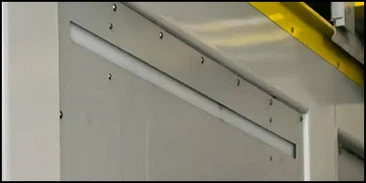

The Machine has two LED lights on the side beams, providing enough lights for production.

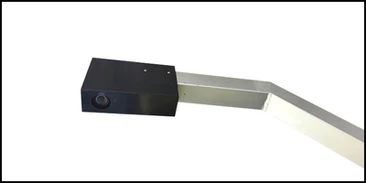

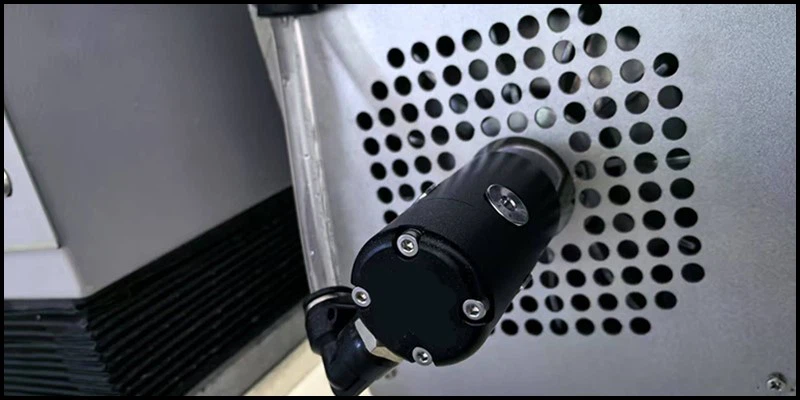

The machine adopts High-pixel, dust-proof Industrial Camera, with a Camera Cover automatically open and close. Advantages of industrial Camera: Dustproof, durable and long life

With 22kw Permanent magnet Main motor, inner-water cooling type, can put a core drill for producing faucet holes. Inner-water colling can push the stone waste from the core drill automatically.

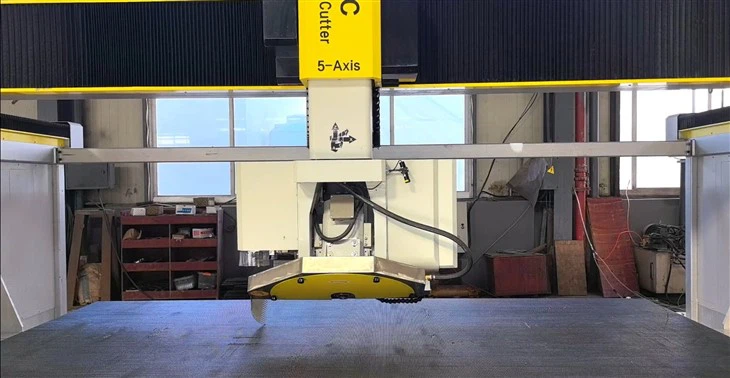

A-axis can tilt 0~90°,C-axis Rotate 0~360°

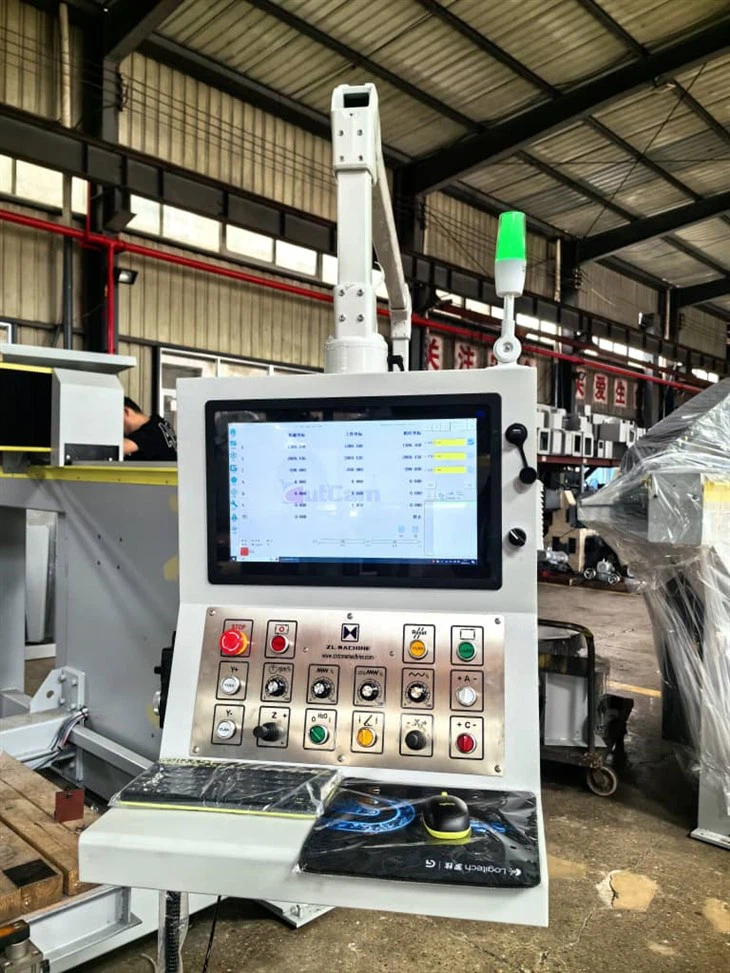

With a touch-screen inductrial computer

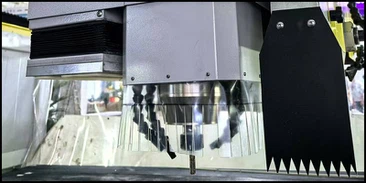

With an 7.5kw Electric Spindle, Can Put Milling bits

Suction Cups Lifting Capacity 500kgs

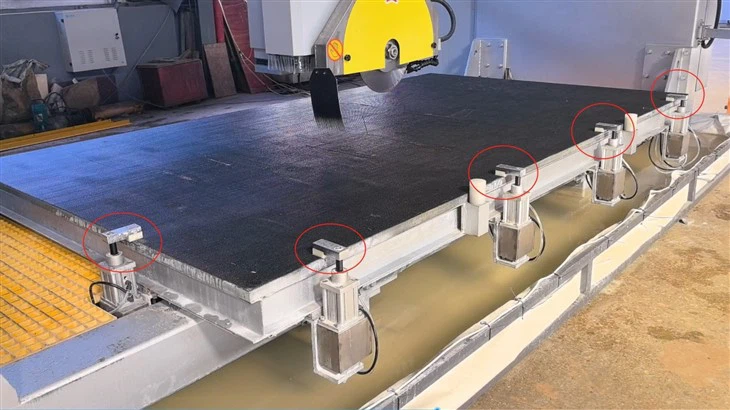

Rotating cylinders to Press Workpieces during Milling Work

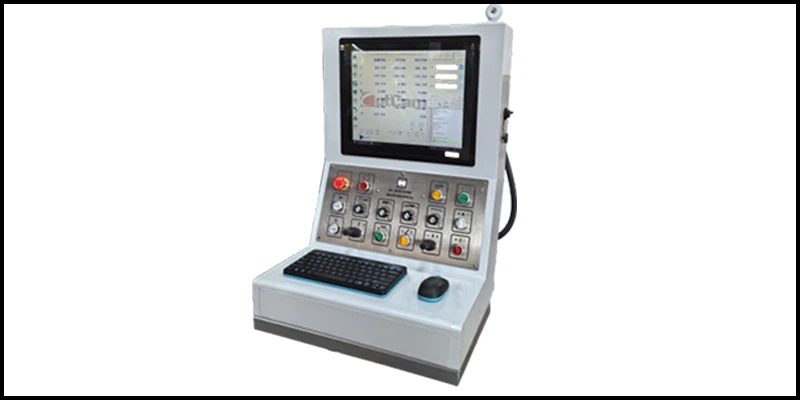

With a Touch-Screen Industrial computer

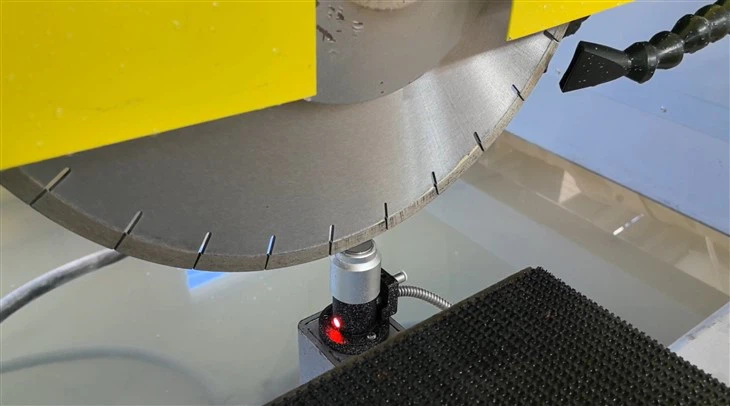

Automatic Blade presetting Tool(For both blade and milling bits)

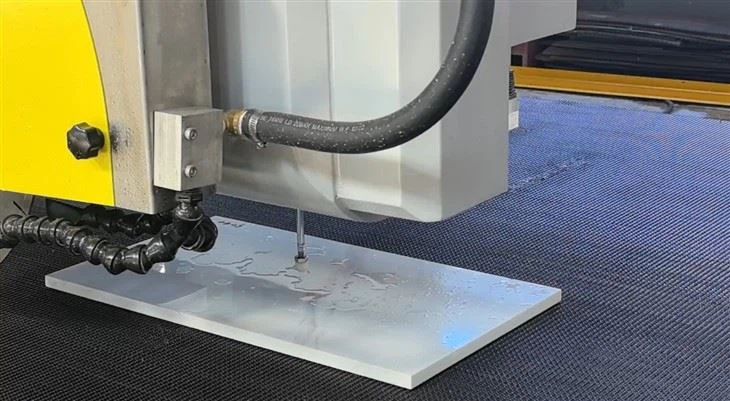

Automatic Thickness Measuring Probe

EXTRA OPTIONS

Option: Hot-Dip Galvanized

Option: Add Four Pieces of Front Sliding Doors

Option: Add Air Conditioner

Option: System change to Esa System

Production Sample

1. Bevel Cut, Straight Cut

2. Cut various of shapes: Circle, Square, Rectangle...

3. Line Shaping: Arc-Line Shaping, Straight-Line Shaping...

4. grooving, Slotting

5. Sink Processing: drill faucet Holes, or mill inner corner for Kitchen sink

Working Videos:

Shipment

Package

Factory

ZHONGLI MACHINERY MANUFACTURING CO., LTD. was founded in 1993, and specializes in stone machinery manufacture.

With more than 30+ years' Experience, we have become one of the Top Ten Stone Machine Brand in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)","China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc.

product-1616-1152

Certificate

ZHONGLI's Honors come from its Strength and efforts. They represent our excellent development and unremitting efforts in stone machinery industry. We will transform every honor into continuous development and innovations again and again.

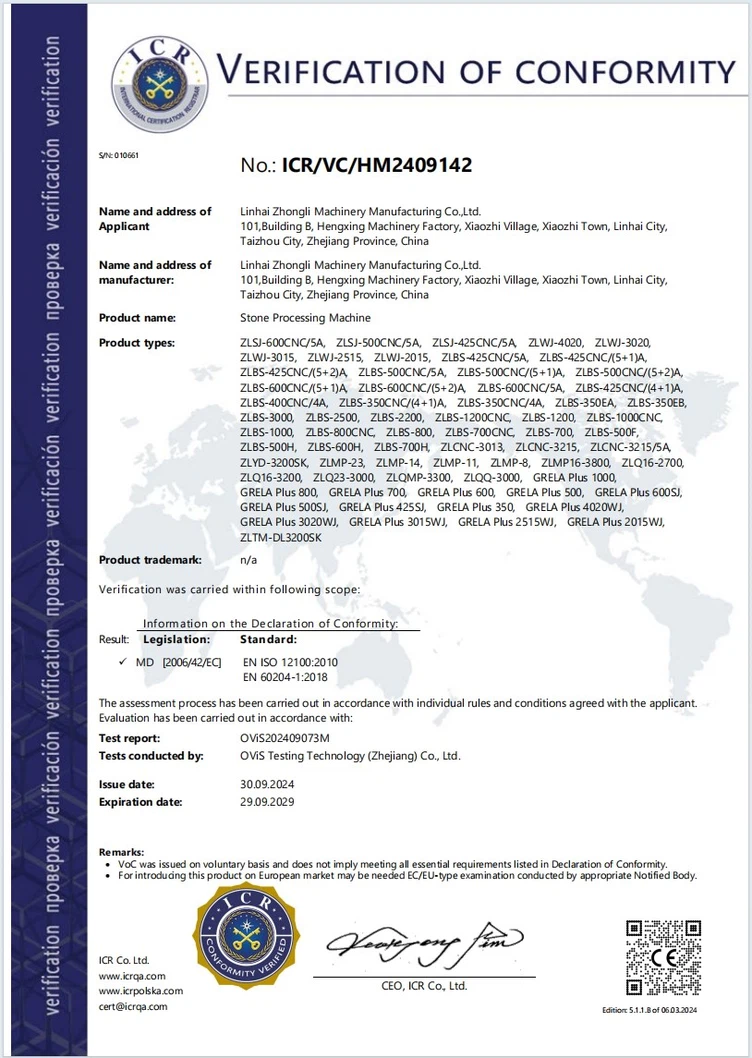

zhongli CE

gai

product-1200-601

5 Axis Bridge Saw is a high-end 5 axis CNC bridge saw for Processing Granite, Marble. Artificial Stone, Sintered Stone, etc. A Camera is equiped to position Plates automatically and show the Producing Procedure. The Machine Head can rotate 0~360°, Tile 0~90°, enable Processing at various Angles and shapes. It adopts CNC system, together with an industrial Computer, makes stone Production totally automatic. Operators can Cutting stone easily:

1. Put the Plate on the Worktable

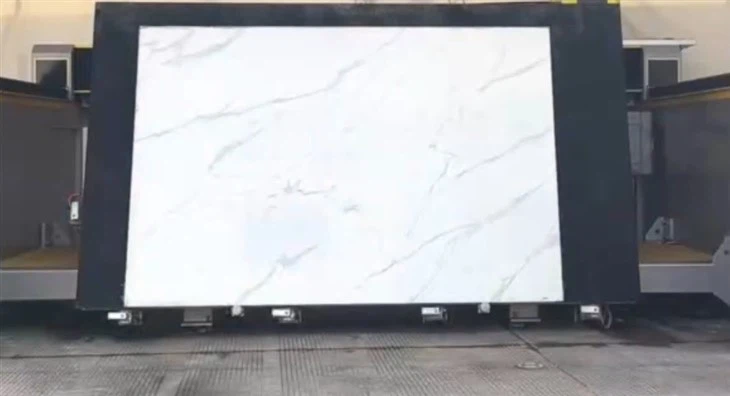

The worktable can tilt up to 85° automatically for easy loading.

2. Position Plates

The camera will automatically position plate, and support photo layout function

3. Import Design Drawings.

You can Import DXF File to the computer, or Choose Conventional shapes from Build-in Liabrary of Shapes. The machine will generate the Cutting steps and paths automatically.

4. Press Start Button.

The Milling Cutter, Camera, Cylinders, Saw Blade, Suction Cups will cooperate and and start working automatically; The Vacuum Suction Cups will help move stone pieces if cutting paths conflicts.

As it's such an user-friendly machine, it gains growing popularity in building industry, home decoration industry, etc.
