Marble Cutting Machine For Sale

Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of marble cutting machine for sale in China. Welcome to wholesale durable marble cutting machine for sale in stock here and get quotation from our factory. Quality products and reasonable price are available.

"Marble Cutting Machine For Sale " , CNC 5+1 Axis Bridge Saw with Factory Price.







Products Features



01



Electric spindle with 24000rpm

* Type: electric spindle

* Rotating speed: 0-24000 rpm
* Router Power: 5.5 kw



The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, engraving, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.



02

A Camera to Locate the Position

This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure

03



Worktable Turnover 85°

This worktable can be flipped over 85°

04



Model ZLBS-425CNC/5+1A: Head tilt 0°~90°, Head rotate 0°~360°



05



Four-Side Chamfering with Range 3500X 2000mm

This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm

06



17" Color Touch-Screen

This Machine has an industrial computer and a 17" color touch-screen.

07



CNC System and Built-in Library

The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.

08



Automatic Tool Setting Gauge

An automatic tool setting gauge is equipped that automatically checks the blade



09





A Group of Rotating Cylinders

A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.

10





Suction Cup

The machine has Suction Cup to move slabs automatically.

11





22-KW Permanent Magnet Motor

The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.

12



Conjoined Structure

The machine is a conjoined structure; it takes up less space and is easy to install and move.





Application Videos











Production Video

how to make a stone football

simply operate a cnc bridge saw

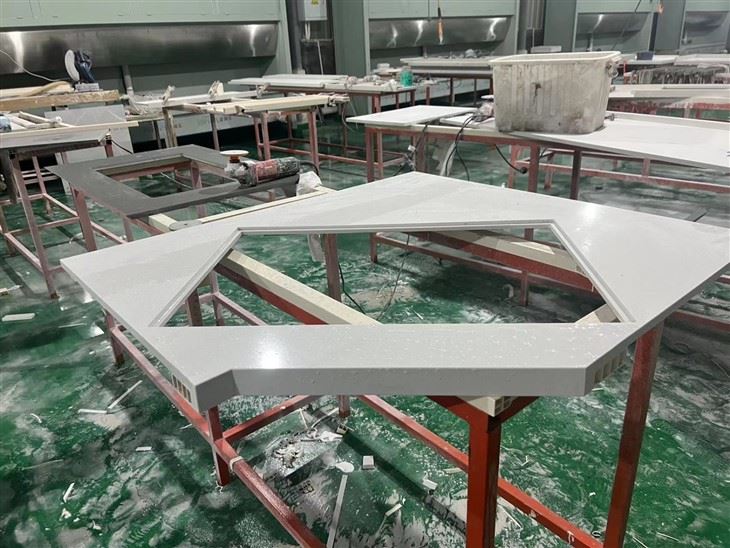

Application Pictures



Application Fileds:



* Residential & Commercial Interiors

* Decorative wall panels

* Countertops/ Vanity Top /Kitchen Sink/ Bathrooms

* Worktops

* Doorsteps, staircases and thresholds

* Fireplaces

* Flooring

* Funeral art

* Street furniture

* Ventilated facades





















Factory Show













Contact now

Intelligent manufacturing of Stone Machinery

Intelligent manufacturing is the main direction of the construction of a manufacturing power, and its development degree is related to the quality level of China's high-end manufacturing industry. The development of intelligent manufacturing plays a very important role in consolidating the foundation of the real economy, building a modern industrial system, and realizing new industrialization. With the release of documents such as the "14th Five-Year Plan" for the development of intelligent manufacturing, the country's support for the intelligent manufacturing industry is also increasing. Since the 18th National Congress of the Communist Party of China, the development of intelligent manufacturing in China's stone industry has made rapid progress, technological innovation has emerged in an endless stream, the supply capacity has been continuously improved, the support system has been gradually improved, and the promotion and application have achieved remarkable results. The "digital intelligence" innovation and development of the stone machinery and equipment subdivision industry has also made great progress, and has a good foundation for further promoting the innovation and deepening of the application of advanced stone manufacturing industry.

From the current overall development situation, the degree of automation of multiple categories of stone machinery has been relatively mature in the domestic stone processing industry, including representative stone intelligent infrared bridge cutting machine, automatic line machine, edging machine, automatic engraving machine, CNC wire saw, CNC machining center and other fields of stand-alone equipment, the level of automation has reached the domestic advanced, and the application in the domestic stone industry is becoming more and more extensive. Of course, compared with Italy, Spain, Germany and other European countries in the stone industry advanced machinery and equipment and research and development technology, there is still a certain gap in China. For example, the German KUKA robot has entered the field of stone processing, and the Italian five-axis and six-axis multi-functional high-end intelligent cutting, engraving, CNC machining centers and other equipment represent the current international advanced intelligent processing and assembly line level. Domestic stone machinery and equipment started late, but is catching up at a high speed and gradually narrowing the gap. With the transformation of economic development mode, the collaborative innovation of production, learning, research and use, and the increase of labor costs in the whole society, the stone processing industry will definitely enter the field of high-end manufacturing faster and move towards the stage of high efficiency, automation and digitalization.

Domestic mining equipment is developing in the direction of intelligence, and the mining machinery and equipment industry has also developed rapidly in recent years, and the research and development level of many products and equipment has been equivalent to foreign advanced technology. For example, in the research and development of permanent magnet technology for mining disc saws and wire saws, domestic equipment has made breakthroughs. Permanent magnet technology is an emerging technology for engines and motors in recent years. After using permanent magnet technology, the motor has higher stability, durability and operation efficiency than traditional motors. Mining equipment such as permanent magnet disc saws and permanent magnet wire saws can automatically perceive the difference between soft stone and hard stone when cutting stone ore, and automatically adjust the cutting speed to make the processing process more efficient and safer. In addition, this kind of machinery can also realize remote control, mobile phone control, or on-site control is coordinated by the computer, making the control more convenient and the level of intelligence significantly improved. At the same time, the mining capacity of mining equipment has reached a new level. For example, the load capacity, safety and stability, mobility and off-road ability of the mine forklift have been significantly improved. The stone mine forklift produced by the enterprise has a maximum load capacity of 52t, while ensuring the load capacity, the bearing capacity and safe operation capacity of each accessory can also be matched with it, so as to achieve strong power and stability; In addition, in order to adapt to the complexity of the stone mining site, the flexibility, mobility and adaptability of mining equipment have also been greatly enhanced. The marble chain arm saw produced by an enterprise in Shanghai adopts dry cutting, no longer needs water as an auxiliary, and gets rid of the mine track, can move flexibly through the crawler, which is very suitable for the stepped open-pit mining and hole mining and other forms of operation of the marble mine, and is widely praised by the application enterprises.

The primary processing equipment of large slabs tends to be large-scale and efficient

The "digital intelligence" of the primary processing equipment of large slabs has distinctive characteristics, mainly to the development of large-scale and high efficiency. In order to improve the efficiency of stone block sawing into plates, the new generation of processing equipment, mainly including marble frame saws, granite multi-strand wire saws, granite multi-piece combination disc saws, etc., equipment processing stability is getting better and better, and more and more saw blades can be installed, which means that the number of large slabs that can be processed at the same time is also increasing, and the size of the blocks that can be processed is also larger. Over the years, an enterprise in Anhui has continuously improved and updated the marble frame saw, the granite multi-strand wire saw developed by an enterprise in Hunan can cut dozens to hundreds of large slabs at one time, and the granite large-scale multi-piece combined disc saw developed by an enterprise in Fujian can greatly improve the processing efficiency while ensuring that the surface of the slab is smooth and smooth, the error is smaller, and the saw seam is smaller, which effectively helps stone enterprises to realize the transformation of production automation, scale, low cost and high efficiency.

Secondary processing equipment tends to be digital and intelligent, assembly line, secondary processing and deep processing equipment is the most mature application in China. In Hui'an, Fujian, many carving factories have applied intelligent manipulators, five-axis engraving machines to carry out stone three-dimensional carving, the advanced technology has been in line with foreign standards, and its intelligent production line has been improved over the years, can serve the industry in batches. With the development of computer technology, the "digital intelligence" production line for the secondary processing of specification plates independently developed by China's machinery and equipment enterprises has gradually emerged, which can realize the digital cutting of the whole process of stone slabs from scanning, digital typesetting to intelligent cutting. For example, the large plate scanner of a large enterprise in Xiamen and Yunfu, the scanned high-definition photos can restore more than 95% of the details of the large plate, and the size error value of the automatic deduction scale is ±0.25mm, which can automatically generate data, export the code sheet, and generate the exclusive digital ID of the stone slab, so that each large board has an identity code, helping the large board sales enterprises to establish a digital large board cloud warehouse, and cooperate with offline inventory to realize the "Taobao-style" sales of stone large slabs online. When the digital slab enters the secondary processing process, undertakes the digital production line, and obtains data from the cloud, it can realize the functions of pre-typesetting, pre-cutting confirmation effect, one-key automatic cutting, automatic labeling, automatic suction cup transfer, etc., and the whole process is unattended, which greatly helps secondary processing enterprises to realize the digital, intelligent and automated processing of stone more efficiently, so as to "confirm the decorative effect before production" and "what you see is what you get". In addition, special-shaped processing equipment has also begun to be updated, and various multi-functional and high-efficiency CNC machining equipment has emerged for the three-dimensional shape of the space with unequal cross-sectional shapes. Stone carving robots, manipulators, CNC engraving and special-shaped processing equipment, etc., can be programmed to complete the processing of a variety of stone special-shaped products with complex shapes, such as rotary bodies, complex three-dimensional figures, animal form carving products processing and plane relief processing. The advantage of this kind of processing equipment is that it can complete multi-process operations at one time, with high processing quality and processing accuracy, and is suitable for the processing of complex contours, which largely replaces the traditional manual carving. Although there has been gratifying progress in the digital and intelligent development of stone machinery and equipment in China, it is undeniable that there are still some gaps between the domestic and international advanced levels. With the continuous development of the stone market, stone machinery manufacturing enterprises only adhere to innovation, the foreign advanced experience into independent research and development of the driving force, the high price of "imported products" will gradually be replaced by domestic intelligent stone machinery and equipment, become the "main force" of China's stone processing equipment, and promote the high-quality transformation and development of the stone industry.
