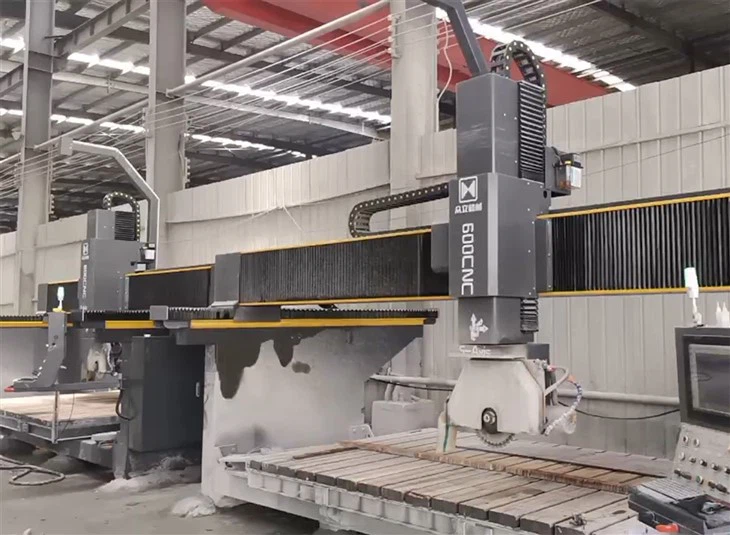

Bridge Saw Machine Granite
Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of bridge saw machine granite in China. Welcome to wholesale durable bridge saw machine granite in stock here and get quotation from our factory. Quality products and reasonable price are available.

|
Model |
ZLBS-600CNC/5A |
ZLBS-600CNC/5A (special design) |
Unit |
|
Worktable size |
L3500*W2000 |
L3500*W2000 |
mm |
|
Maximum Processing |
L3500*W2000*H500 |
L3500*W2000*H800 |
mm |
|
Blade diameter |
₵350-600 |
₵350-600 |
mm |
|
Control center |
industry computer with CNC |
industry computer with CNC |
|
|
Driving motor |
Servo motor |
Servo motor |
|
|
Main motor power |
22 (permanet magnet motor with frequency) |
22 (permanet magnet motor with frequency) |
kw |
|
Total power |
30 |
33 |
kw |
|
Head rotate |
0°-360° |
0°-360° |
|
|
Head tilt |
0°-90° |
0°-90° |
|
|
worktable flip |
85° |
no |
|
|
Water consumption |
2 |
2 |
m³/h |
|
Total weight |
6 |
6 |
t |
|
Dimensions |
L5750*W3260*H4100mm |
L5750*W3260*H4100mm |
mm |
|
Delivered dimensions |
L5750xW2200xH2500mm |
L5750xW2200xH2500mm |
|
|
Delivered method |
The main part delivered as whole in a high-cube container |
The main part delivered as whole in ahigh-cube container |
|
Price: $30,000~$40,000
|
Option: (System)
1. Self-developed CNC System with "Cut Cam"software for 2D/2.5D Production
2. ESA System from Italy for 3D Production |
Option: Chassis be hot-dip galvanized |
Option: Add front sliding doors |
Option: Worktable be faced with plastic plate and rubber |
Feature
1: The machine is a heavy-duty conjoined structure; it is strong, takes up less space, and is easy to install and move.
2: With an industrial computer and a 17" color touch-screen.

3: Use a camera to locate the position of the plate and display it in the cutting procedure.

4: A 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
5: The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.

6: Option:The machine chassis could be hot-dip galvanized, and the worktable could be faced with plastic plates and rubber.
Application Picture and Video



Shipment


Factory




Honour


Bridge saw machine granite is an advanced piece of equipment that is designed to make granite processing easier and more efficient. This high-tech machine is ideal for cutting and shaping a variety of granite products, including countertops, tiles, and slabs.
One of the most notable features of the bridge saw machine granite is its ability to save time and effort. With its automated cutting capabilities, this machine can process large amounts of granite quickly and with minimal human input. This makes it an excellent choice for factories and businesses that need to produce high volumes of granite products on a regular basis.
In addition to its time-saving benefits, the bridge saw machine granite is also incredibly accurate. Thanks to its advanced computer-controlled system, it can make precise cuts that result in perfectly shaped granite products every time. This degree of precision is especially important for businesses that need to deliver high-quality products to their customers.
Another advantage of the bridge saw machine granite is its user-friendly interface. Operators can easily program the machine to execute specific cutting patterns and shapes, which makes it easy to create customized products. This feature also allows businesses to take on a wider range of projects, since the machine can easily be adapted to accommodate different types of granite products.
In terms of maintenance, the bridge saw machine granite is very low-maintenance. It is designed to withstand the wear and tear of daily use, and its parts and components are built to last. This means that businesses can rely on this machine for many years without having to worry about expensive repairs or replacements.
Overall, the bridge saw machine granite is an excellent investment for businesses that need to process large amounts of granite quickly and accurately. Its time-saving, efficient, and automated design makes it an indispensable tool for any granite processing facility, and its user-friendly interface ensures that operators can easily customize the machine to suit their needs. With its low maintenance requirements and high-quality results, the bridge saw machine granite is a must-have for any business that wants to stay ahead of the competition in the granite processing industry.
