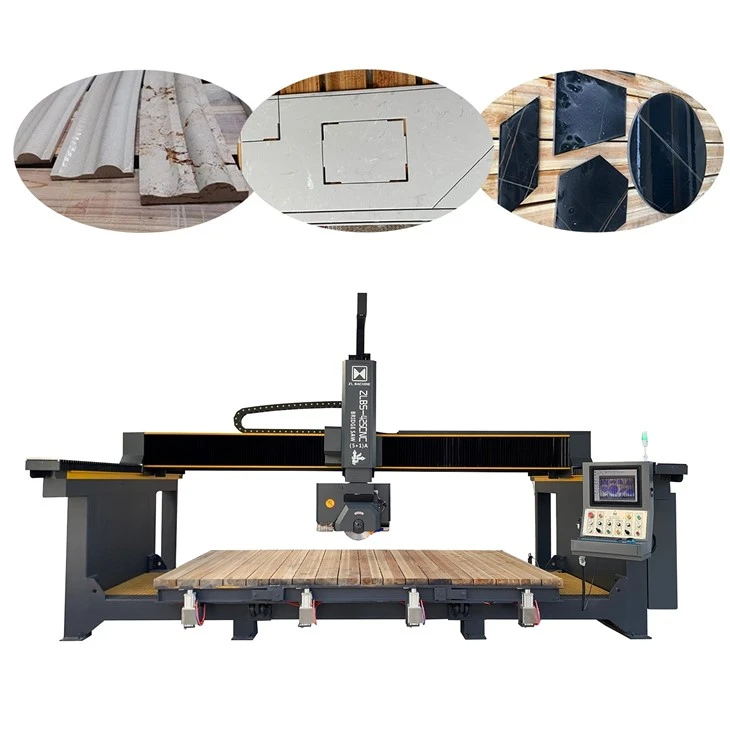

Saw Granite Cutting Machine

Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of saw granite cutting machine in China. Welcome to wholesale durable saw granite cutting machine in stock here and get quotation from our factory. Quality products and reasonable price are available.

Saw Granite Cutting Machine :







Products Features



01



Electric spindle with 24000rpm

* Type: electric spindle

* Rotating speed: 0-24000 rpm
* Router Power: 5.5 kw



The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, engraving, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.



02

A Camera to Locate the Position

This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure

03



Worktable Turnover 85°

This worktable can be flipped over 85°

04



C-axis Rotate  0°~360°, A-axis Rotate 0°~90°

Head tilt 0°~90°, Head rotate 0°~360°



05



Four-Side Chamfering with Range 3500X 2000mm

This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm

06



17" Color Touch-Screen

This Machine has an industrial computer and a 17" color touch-screen.

07



CNC System and Built-in Library

The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.

08



Automatic Tool Setting Gauge

An automatic tool setting gauge is equipped that automatically checks the blade



09





A Group of Rotating Cylinders

A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.

10





Suction Cup

The machine has Suction Cup to move slabs automatically.

11





22-KW Permanent Magnet Motor

The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.

12



Conjoined Structure

The machine is a conjoined structure; it takes up less space and is easy to install and move.







Functions:
* Straight Cut: various polygons, vertical Cut, inclined Cut, horizontal Cut, Chamfering
* Curve Cut: Curves, Waves,Circles, Ovals, and Maws.
* Stone Milling, Engraving, Profiling for making Inner angles, L-shaped countertops and four-sided under-hung countertops/Kitchen Sink/ Basin

* Vein Matching









Working Videos











countertop Production

how to make a stone football

simply operate a cnc bridge saw







Applications



1. Application Fileds:



* Residential & Commercial Interiors

* Decorative wall panels

* Countertops/ Vanity Top /Kitchen Sink/ Bathrooms

* Worktops

* Doorsteps, staircases and thresholds

* Fireplaces

* Flooring

* Funeral art

* Street furniture

* Ventilated facades





2. Application Pictures:













Factory Show



Our Factory was founded in 1993, and specializes in stone machine manufacture.

After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.











Shippment



This model can be loaded into a 40' HIGH-CUBE Container.





Honour





---





FAQ

Q: Can you make Sample production according to my requirement?

A: Of Course. You can send us the design Drawing, we'll produce a sample and take a video for you.

Q: Where is your factory located ? How can I visit it ?

A: Our factory is located in Taizhou city,Zhejiang province,China. After you reach local airport or high-way Station, we will pick you up.

Q: What is your MOQ of your machine?

A: Our MOQ is 1 set.

Q: How long is the production time?

A: It generally takes 30 days

Q: This is the first time I buy the machine, is it easy to operate?

A: This Machine is easy-operated even for new beginners, and we will provide the operation manual&video. We also provide free online service.







Contact now







---

Industry Information Sharing

The genetic connection between granite and tectonics:

The establishment of plate tectonics theory provides a theoretical basis for the study of rock tectonics. Due to the differences in material composition, temperature and pressure conditions, and tectonic changes in different tectonic environments, magma must have different manifestations in the formation mechanism, degree of contamination, differentiation type, migration process, invasion mode, and subsequent metamorphism and deformation, and form certain rock types and magmatic rock assemblages. Barker D.S.'s basic assumptions about magmatism reflect the intrinsic relationship between magmatic activity and tectonics:

(1) Magma is produced by the partial melting of the earth's mantle or crust, and there is no long-term worldwide magma chamber.

(2) Melting is a reflection of the dynamic process, heat cannot be concentrated in a small high-temperature space, and radiant heat energy alone is not enough to cause melting. Therefore, there are three ways for magma to form: (a) the rock reaches a high temperature state through the heat conduction of the lower magma or the migration of faults, shear, subduction, etc., (b) the depressurization process of fault uplift or penetration, and (c) the change of material composition with low solidus during metamorphism.

(3) Even if magma entering the earth's crust is instantaneous on geological time scales, different phases of magmatism (even if modified) will retain their chemical characteristics [1].

These basic hypotheses clearly state the genetic link between magmatism and tectonics, the first two hypotheses illustrate the restrictive effects of geotectonics on magmatism, and the third hypothesis illustrates the possibility of exploring the relationship between the two.

Peive A.B et al. directly linked the formation of granite to the evolution of the earth's crust, and divided the development and evolution of the earth's crust into three ordered stages: oceanic, transitional, and continental [2]. The oceanic crust has been modified in a series of complex processes such as subduction, and evolved into the transition crust. In this process, through local melting or metasomatism, basalt can form locally new granite layers in the immature transition crust (such as island arcs), constituting the "germination body" of the future continental crust, which is obviously characterized by the content of Na₂O greater than that of K₂O, reflecting the nascent nature and immaturity characteristics of granite layers. Clase graniteization is a product of the maturation of the transitional crust, reflecting the continuous transformation of oceanic crust materials and the gradual evolution of continental crust. The development of plagioclase granitization to large-scale potassium feldsparization is a prominent event in the evolution stage from the transition crust to the continental crust, and the content of K₂O and Na₂O also changes, making the crust move towards the final maturity stage. This new understanding reveals the significance of granite in tectonic evolution, and clarifies the types and properties of granite at each stage of crustal evolution, which becomes a direct indicator of different stages of crustal evolution.

In recent years, Wickham S.M.'s research on the metamorphism of the Pyrenees Orientales has suggested that granite can be formed in the continental rift, a tectonic environment of high temperature and low pressure. Due to the tensile and thinning of the earth's crust due to the rifting action, the upwelling of the thermal material in the upper mantle is caused by the partial remelting of the crustal material, resulting in the formation of a large number of granite intrusions and several condensed metamorphic rocks representing extremely high geothermal gradients [3]. The thermal material of the upper mantle may also be directly involved in the mixing and transformation of magma in the rift valley environment, which transforms the crustal material into a transitional type and forms a tensile transition crust, so He et al. proposed a five-stage model of crustal evolution [4].

All these new understandings of the relationship between granite and tectonic processes are the basis for our study of the intrinsic relationship between the two, and also the theoretical basis for our tectonic environment judgment of granite.
