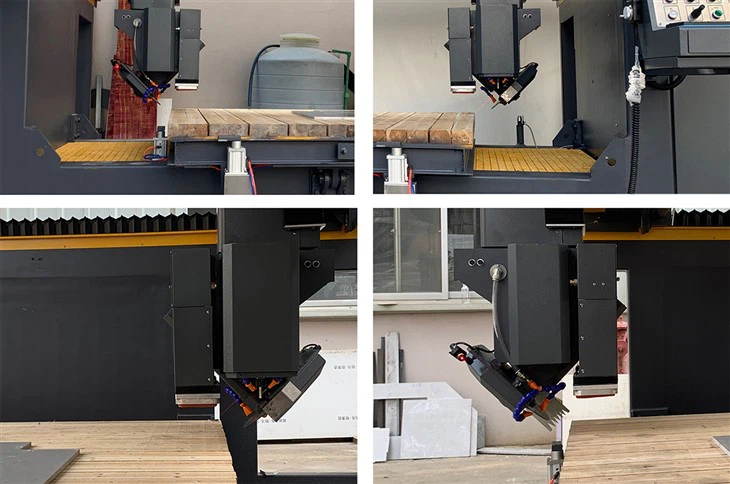

CNC Marble Cutting Machine
Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of cnc marble cutting machine in China. Welcome to wholesale durable cnc marble cutting machine in stock here and get quotation from our factory. Quality products and reasonable price are available.
Parameters
|
Model |
ZLBS-600CNC/5A |
ZLBS-600CNC/5+1A |
Unit |
|
Worktable size |
L3500*W2000 |
L3500*W2000 |
mm |
|
Maximum Cutting Size |
L3500*W2000*H150 |
L3500*W2000*H150 |
mm |
|
X.Y. Z-axis Transmission |
X-axis adopts #30 Linear Guide Rail + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Planetary reducer. |
X-axis adopts #30 Linear Guide Rail + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Planetary reducer. |
|
|
C-axis |
rotate 0°~360°, adopt Robot Reducer |
rotate 0°~360°,adopt Robot Reducer |
|
|
A-axis |
tilt 0°~90°, adopt Robot Reducer |
Tilt 0°~90°,adopt Robot Reducer |
|
|
Camera brand |
Hikvison |
Hikvison |
|
|
Blade diameter |
350-600mm |
350-600mm |
mm |
|
Main motor |
self-developed 5-axis special motor 22KW(permanet magnet motor with frequency) |
self-developed 5-axis special motor 22KW(permanet magnet motor with frequency) |
|
|
Control center |
CutCam or Esa |
CutCam or Esa |
|
|
Servo motor |
1.5kw Servo motor YUHAI Or ESA (Y axis have two servo motors) |
1.5kw Servo motor YUHAI Or ESA (Y axis have two servo motors) |
|
|
Main motor RPM |
6000 |
6000 |
RPM |
|
Main Spindle type |
Can be put a drill |
Can be put a drill |
|
|
Electric Spindle for Milling Work (Optional) |
/ |
* Type: electric spindle * Rotating speed: 0-24000 rpm * Power: 5.5kw |
|
|
Total power |
30kw |
35kw |
kw |
|
worktable flip |
85° |
85° |
|
|
Water consumption |
2 |
2 |
m³/h |
|
Total weight |
6 |
6 |
t |
|
Dimensions |
L5750*W3750*H4000mm |
L5750*W3750*H4000mm |
mm |
| Shipment | 40' high-Cube Container | 40' high-Cube Container |
Price: $32,000~$45,000
|
Option: (System)
1. Self-developed CNC System with "Cut Cam"software 2. ESA System from Italy |
Option: Chassis be hot-dip galvanized |
Option: Add front sliding doors |
Option: Worktable be faced with plastic plate and rubber |
Features
- Monoblock Structure with Man-Machine interaction
It is a monoblock machine; it takes up less space and is easy toinstall and move.It can be connected to the internet through Wi-Fi and cell phone wireless sharing, etc. to realize man-machine interaction, remote monitoring and system updating. And the operation is easy.
- #35 Guide Rail
It is a heavy-duty machine.
It adopts #35 Guide Rail for Y axis and Z axis, enables production for maximum 17cm Granite slabs. (For processing Thick granite slabs, 35mm Guide Rail is a must, which ensures the long lifetime of the machine. )
- Four-Side Chamfering with Range 3500X 2000mm
This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.
- Automatic Tool Setting Gauge
It can automatically check the external diameter of saw blade, and can calculate chamfer offset .
- A 22-KW permanent magnet motor
It can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
- With Suction Cups
If the blade-cutting path conflicts, the suction cup will help to move slabs automatically. The suction sups can lift and move maximum 200kgs' slab. It makes the production fully automatic.
- With an industrial computer and a 17" color touch-screen.
This Machine has an industrial computer and a 17" color touch-screen. The interface is clear and easy to use, facilitating the interaction between the operator and the machine. The computer comes with CAM software, improve the convenience of drawing designs and programming.
- With a Built-in Library of Conventional-Shaped Drawings
The CNC System has a built-in drawing library of conventional shapes, supporting data input, and DXF format Files. Operators can import design drawings in DXF Format to this computer, or choose conventional shapes from the built-in drawing library.
- WIth a Camera
This Machine equipt a high-precision camera to locate the position of the plate and show the cutting procedure.
- WIth a measuring probe for thickness
The measuring probe for thickness, together With the image caught by the camera, the machine can calculate the size of the slabs automatically.
- Worktable Turnover 85°
This worktable can be turned over 85° for easy loading stones.
- Automatic lubrication system
Application Pictures and Videos
Shipment
Factory
CNC marble cutting machines are an innovative technology designed to increase efficiency and precision in cutting marble. They are highly sought after in the marble industry because of their numerous benefits, including:
1. High Precision: It;s highly accurate, providing unparalleled precision during the cutting process. This is especially important for complex designs that require consistent and even cuts.
2. Versatility: These machines are highly versatile and can be used to cut a variety of different materials, including marble, granite, and other types of stone. This makes them ideal for use in various industries such as construction, architecture, and interior design.
3. Automation: It;s highly automated, meaning they require little to no human intervention during the cutting process. This makes them very efficient and reduces the risk of errors.
4. Cost-effectiveness: These machines are highly cost-effective, making them an excellent investment for businesses of all sizes. Since they are able to increase productivity and reduce labor costs, a quick return on investment is possible.
5. Reduced Waste: It;s designed to maximize the use of raw materials, thereby reducing waste. This is not only environmentally friendly, but also helps reduce material costs.
FAQ
Q: Can you make Sample production according to my requirement?
A: Of Course. You can send us the design Drawing, we'll produce a sample and take a video for you.
Q: Where is your factory located ? How can I visit it ?
A: Our factory is located in Taizhou city,Zhejiang province,China. After you reach local airport or high-way Station, we will pick you up.
Q: What is your MOQ of your machine?
A: Our MOQ is 1 set.
Q: How long does it take to ship out if there is no stock?
Our machine's usual manufacturing cycle is shorter than 45 days. If the customer has specific requirements, the delivery time will be established separately.
Q: This is the first time I buy the machine, is it easy to operate?
A: This Machine is easy-operated even for new beginners, and we will provide the operation manual&video. We also provide free online service.
Q: Can your products be customized?
A: If the customer has specific product needs, we will first confirm whether these can be met. If possible, we will devise a strategy to confirm with the customer. If there are no issues, we will provide a reasonable estimate, sign a contract with the customer, and begin production after receiving a payment.
