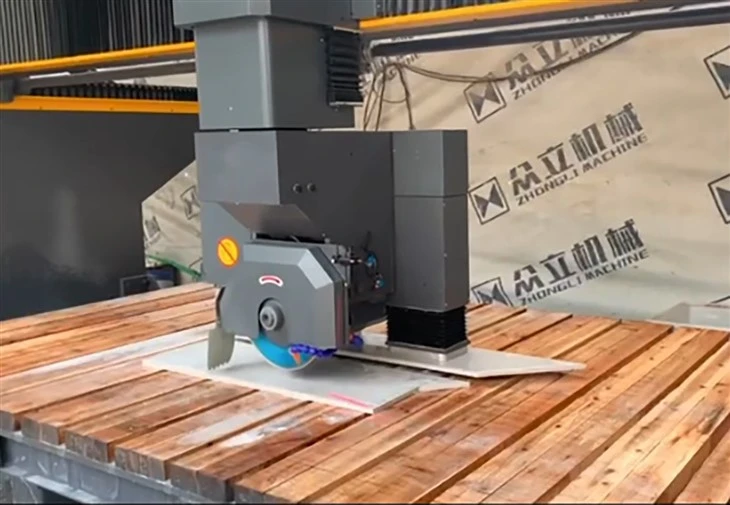

Marble Cutting Equipment

Marble Cutting Equipment Price: (USD)

Option: (System)   1. Self-developed CNC System with "Cut Cam"software 2. ESA System from Italy

Option: Chassis be hot-dip galvanized

Option: Add front sliding doors

Option: Worktable be faced with plastic plate and rubber







Products Features



1. With an Electric spindle with 24000rpm

* Type: electric spindle

* Rotating speed: 0-24000 rpm
* Router Power: 5.5 kw

The rotating speed of this electric spindle is super higher. It makes fast & precise hole-drilling, engraving, curve cutting and corner cutting for Countertop, Kitchen Sink, etc.





2. C-axis Rotate 0°~360°, A-axis Rotate 0°~90°

Working Head can rotate 0°~360°, and tilt 0°~90°





3. With Suction Cups

If the blade-cutting path conflicts, the suction cup will help to move slabs automatically.





4. With a Camera to Locate the Position

This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure





5. With 17" Color Touch-Screen

This Machine has an industrial computer and a 17" color touch-screen.





6. With CNC System and a Built-in Library

The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.





7. With A Group of Rotating Cylinders

A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.





8. Four-Side Chamfering with Range 3500X 2000mm

This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.





9. Automatic Tool Setting Gauge

An automatic tool setting gauge is equipped that automatically checks the blade.



10. Worktable Turnover 85°

The worktable can be flipped over 85°





11.With 22-KW Permanent Magnet Motor

The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.





12.Conjoined Structure

The machine is a conjoined structure; it takes up less space and is easy to install and move.







Functions

* Straight Cut: various polygons, vertical Cut, inclined Cut, horizontal Cut, Chamfering
* Curve Cut: Curves, Waves,Circles, Ovals, and Maws.
* Stone Milling, Engraving, Profiling for making Inner angles, L-shaped countertops and four-sided under-hung countertops/Kitchen Sink/ Basin

* Vein Matching









Working Videos











countertop Production

how to make a stone football

simply operate a cnc bridge saw







Applications













Factory Show











This model can be loaded into a 40' HIGH-CUBE Container.



ZL Machine's Honors come from its Strength and efforts. They represent our excellent development and unremitting efforts in stone machinery industry. We will transform every honor into continuous development and innovations again and again.

Contact now

About Marble Countertop :
Indoor marble countertops are a common material in modern home decoration. It is not only beautiful and elegant, but also has a long service life, high wear resistance and durability. When choosing indoor marble countertops, you need to pay attention to the following requirements.
1. Material quality
Marble is a natural stone whose quality and performance are affected by the stone itself. When choosing marble countertops, you first need to choose marble with stable quality and uniform texture. Pay attention to whether the texture and color of the marble are uniform, and whether there are cracks, defects and other quality problems.
2. Countertop size
The size of the marble countertop needs to be selected according to the usage scenario and the size of the home space. Generally speaking, the length and width of marble countertops should be coordinated with the home space and should not be too long or too wide. In addition, the thickness of the marble countertop also needs to be appropriate, generally 2-3 cm, and should not be too thin or too thick.
3. Aesthetics
Marble is a beautiful and elegant material with various textures and colors, which can bring more artistic flavor to the home space. When choosing marble countertops, you need to choose according to the overall style and color matching of your home to avoid colors and textures that are too abrupt or uncoordinated.

4. Durability
Marble countertops need to be highly resistant and durable to withstand the friction and wear of daily use. When choosing a marble countertop, you need to pay attention to choosing a stone with stable quality, high hardness and durability, which can meet the needs of daily use.
5. Daily maintenance
Marble countertops require routine care and maintenance to maintain their beauty and durability. When choosing marble countertops, you need to pay attention to choosing stone that is easy to clean and maintain, which can facilitate daily cleaning and maintenance.
To sum up, when choosing indoor marble countertops, you need to consider requirements such as material quality, countertop size, aesthetics, durability and daily maintenance. Only by choosing a marble countertop suitable for your home space and carrying out correct maintenance and care can you ensure its beauty and service life.
