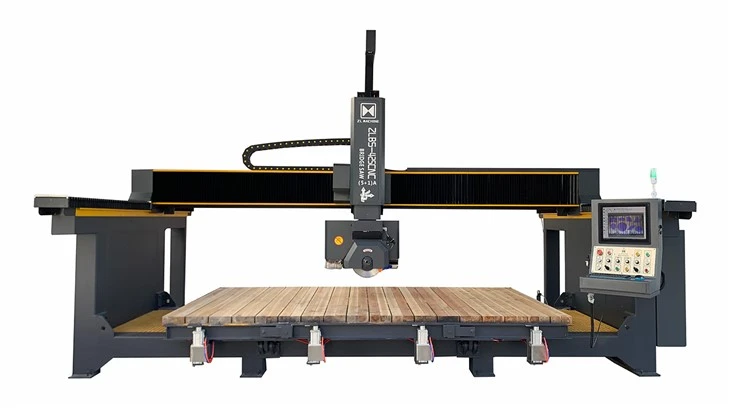

Marble Bridge Cutting Machine
Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of marble bridge cutting machine in China. Welcome to buy TUV-certified marble bridge cutting machine in stock here and get quotation from our factory. Quality products and reasonable price are available.

|
Model |
4+1 Axis CNC bridge saw |
5+1 Axis CNC bridge saw |
Unit |
|
Worktable size |
L3500*W2000 |
L3500*W2000 |
mm |
|
Maximum cutting |
L3500*W2000*H90 |
L3500*W2000*H90 |
mm |
|
Maximum chamfering |
L3500*W2000*H60 |
L3500*W2000*H60 |
mm |
|
Blade diameter |
350-425 |
350-425 |
mm |
|
Main motor power |
15 |
22 (permanent magnet motor with frequency) |
kw |
|
Router power |
5.5 |
5.5 |
kw |
|
Control center |
industry computer with CNC |
industry computer with CNC |
|
|
Controller brand |
"Cut Cam" CNC System |
"Cut Cam" CNC System or ESA system from Italy |
|
|
Driving motor |
Servo motor |
Servo motor |
|
|
Router max speed |
24000 |
24000 |
RPM |
|
Total power |
28 |
35 |
kw |
|
Suction cup lifting weight |
200 |
200 |
kg |
|
Head rotate |
0°-360° |
0°-360° |
|
|
Head tilt |
0°and 45° |
0°-90° |
|
|
Cylinders |
5 |
5 |
group |
|
Dimensions |
L5750*W3260*H3800 |
L5750*W3260*H3800 |
mm |
|
Water consumption |
2 |
2 |
m³/h |
|
Total weight |
5.4 |
5.4 |
t |
|
Main part delivered size |
5750x2200x2500 |
5750x2200x2500 |
mm |
|
Machine-delivered method |
Main part delivered as a whole (HQ container) |
Main part delivered as a whole (HQ container) |
|
|
Option: (System)
1. Self-developed CNC System with "Cut Cam"software 2. ESA System from Italy |
Option: Chassis be hot-dip galvanized |
Option: Add front sliding doors |
Option: Worktable be faced with plastic plate and rubber |
Feature
1: The machine is a conjoined structure; it takes up less space and is easy to install and move.
2: This machine has excellent four-side chamfering function and an excellent chamfering range 3500x2000mm

3: With an industrial computer and a 17" color touch-screen.

Option: own CNC system or ESA system from Italy
4: Use a camera to locate the position of the plate and display it in the cutting procedure.

5: The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
6: An automatic tool setting gauge is equipped that automatically checks the blade.

7. The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from a designer or a countertop measuring gauge.

8: The worktable can be flipped up to 85°.
9: A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.

10: Option: the machine chassis could be hot-dip galvanized, and the worktable could be faced with plastic plates and rubber.

11: Option: front sliding door.
Application Picture and Video



Shipment



Factory




Honour


The marble bridge cutting machine is rapidly becoming the preferred machine for cutting and shaping marble. It is a highly advanced technological machine that offers numerous benefits. Here are ten significant advantages of using the marble bridge cutting machine:
1. High Precision - The marble bridge cutting machine is known for its high precision cutting and shaping capabilities. It is designed to cut even the most intricate shapes with great accuracy.
2. Efficient - The machine is highly efficient, making it possible to complete large scale projects in less time.
3. Versatile - The marble bridge cutting machine is versatile, and it can cut and shape different sizes of marbles in various thicknesses.
4. Easy to Operate - The machine is easy to operate, making it ideal for both beginners and advanced users. With just a few simple controls, you can cut and shape your marbles with ease.
5. Durable and Sturdy - The machine is made of high-quality materials, making it durable and sturdy. With proper maintenance, it can serve you for many years.
6. Low Maintenance Cost - The marble bridge cutting machine requires minimal maintenance, which means that you will save money in the long run.
7. Safety - The machine is equipped with advanced safety features, ensuring that you are safe while using it.
8. Easy to Clean - The machine is easy to clean, and you can easily remove the dust and debris that accumulates during operation.
9. High Return on Investment - The marble bridge cutting machine is a great investment for businesses that want to increase their production and profitability.
10. Customer Satisfaction - The machine produces high-quality marble products, which is essential for customer satisfaction and repeat business.
Overall, the marble bridge cutting machine is a fantastic technological advancement that offers numerous advantages. It is a must-have tool for any business that deals with marbles. It is efficient, safe, durable, versatile, and offers a high return on investment. Investing in this machine is a positive step towards the growth of your business.
