CNC Marble Bridge Saw
Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of cnc marble bridge saw in China. Welcome to wholesale durable cnc marble bridge saw in stock here and get quotation from our factory. Quality products and reasonable price are available.
We are a source factory that has produced stone machines for more than 30 years. We produce Marble CNC Bridge Saws, that can handle photo layout as well as a wide range of chamfering and 3D shaping processes, including arc and wave line shaping. The main motor is a 22kw permanent magnet motor, which can output the corresponding power according to the strength required by the cutting material, which not only ensures fast cutting speed but is also very energy-saving.The motor spindle speed is 6000 rpm, and the spindle can be installed on a milling cutter to mill holes and inner angles. We already test each machine before leaving the factory,and we provide a responsible after-sales service to ensure the high-quality operation of the machine every day. Larger machines need to be customized.
|
Model |
ZLBS-600CNC/5A |
ZLBS-600CNC/5A (special design) |
Unit |
|
Worktable size |
L3500*W2000 |
L3500*W2000 |
mm |
|
Maximum Processing |
L3500*W2000*H500 |
L3500*W2000*H800 |
mm |
|
Blade diameter |
₵350-600 |
₵350-600 |
mm |
|
Control center |
industry computer with CNC |
industry computer with CNC |
|
|
Driving motor |
Servo motor |
Servo motor |
|
|
Main motor power |
22 (permanet magnet motor with frequency) |
22 (permanet magnet motor with frequency) |
kw |
|
Total power |
30 |
33 |
kw |
|
Head rotate |
0°-360° |
0°-360° |
|
|
Head tilt |
0°-90° |
0°-90° |
|
|
worktable flip |
85° |
no |
|
|
Water consumption |
2 |
2 |
m³/h |
|
Total weight |
6 |
6 |
t |
|
Dimensions |
L5750*W3260*H4100mm |
L5750*W3260*H4100mm |
mm |
|
Delivered dimensions |
L5750xW2200xH2680mm |
L5750xW2200xH2680mm |
|
|
Delivered method |
The main part delivered as whole in a high-cube container |
The main part delivered as whole in ahigh-cube container |
|
Feature
1: The machine is a heavy-duty conjoined structure; it is strong, takes up less space, and is easy to install and move.
2: With an industrial computer and a 17" color touch-screen.
3: Use a camera to locate the position of the plate and display it in the cutting procedure.
4: A 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.
5: The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.

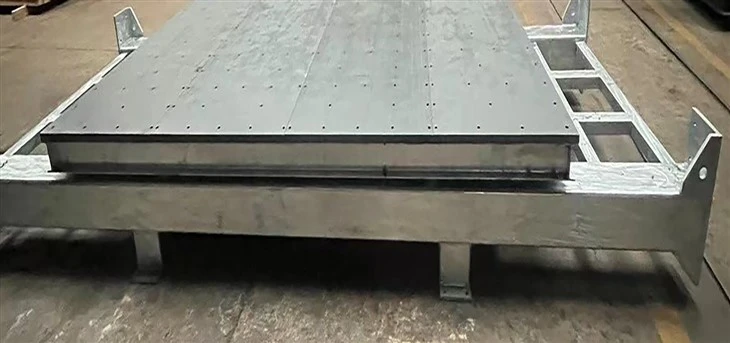

6: Option:The machine chassis could be hot-dip galvanized, and the worktable could be faced with plastic plates and rubber.
Application Picture and Video
Shipment
Factory
Our plant has a history of 30 production machines and has been exporting equipment for over 15 years. Our machines are shipped to nations all over the world, including Europe, the United States, Canada, South America, India, and Australia. We can deliver better services to customers remotely as Internet technology advances.
