Headstone Engraving Machine
Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of headstone engraving machine in China. Welcome to wholesale durable headstone engraving machine in stock here and get quotation from our factory. Quality products and reasonable price are available.
Products Parameter
|
Model |
ZLBS-600CNC/5A |
ZLBS-600CNC/5+1A
|
Unit |
|
Worktable size |
L3500*W2000 |
L3500*W2000 |
mm |
|
Maximum Processing |
L3500*W2000*H500 |
L3500*W2000*H500 |
mm |
|
Blade diameter |
350-600 |
350-600 |
mm |
|
Control center |
Industry computer with CNC |
Industry computer with CNC |
|
|
Controller brand |
own system or ESA hardware with Pegasus software from Italy |
own system or ESA hardware with Pegasus software from Italy |
|
|
Driving motor |
Servo motor |
Servo motor |
|
|
Main motor power |
22 (permanet magnet motor with frequency) |
22 (permanet magnet motor with frequency) |
kw |
|
Main Motor Spindle type |
Can be put a drill |
Can be put a drill |
|
|
Spindle motor power |
/ |
5.5 |
kw |
|
Total power |
30 |
35 |
kw |
|
Head rotate |
0°-360° |
0°-360° |
|
|
Head tilt |
0°-90° |
0°-90° |
|
|
worktable flip |
85° |
85° |
|
|
Water consumption |
2 |
2 |
m³/h |
|
Total weight |
6 |
6 |
t |
|
Dimensions |
L5750*W3260*H3700mm |
L5750*W3260*H37400mm |
mm |
|
Delivered dimensions |
L5750xW2200xH2660mm |
L5750xW2200xH2660mm |
|
|
Delivered method |
The main part delivered as whole in an open-top high-cube container |
The main part delivered as whole in an open-top high-cube container |
|
Quotation
Price: $30,000~$40,000
|
Option: 1. Self-developed CNC System with "Cut Cam"software, better for 2D/2.5D Production
2. ESA System from Italy for 3D Production |
Option: Hot Galvanized (USD) |
Option: front sliding doors |
Option:worktable with plastic plate and rubber |
Products Features
1

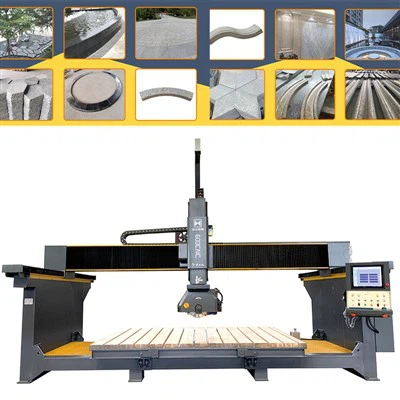

5-Axis Heavy-Duty CNC Machine
The machine is a 5-Axis heavy-duty CNC Bridge Saw Machine
It has conjoined structure, takes up less space, and is easy to install and move.
2
A Camera to Locate the Position
This Machine equipt a high-precision camera to locate the position of the plate and display it in the cutting procedure
3
Worktable Turnover 85°
This worktable can be flipped over 85°
4
Head tilt 0°-90°, Head rotate 0°-360°
The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
5
Four-Side Chamfering
This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm
6
17" Color Touch-Screen
This Machine has an industrial computer and a 17" color touch-screen.
7
CNC System and Built-in Library
The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from designer or countertop measuring gauges.
8
Automatic Tool Setting Gauge
An automatic tool setting gauge is equipped that automatically checks the blade
Application Videos
Production Video 1---ZLBS-600CNC/5A
Stone Cutting
Production Video 2---ZLBS-600CNC/5A
Stone Profiling
Application Pictures
Tombstone Production
Cutting Curved Shapes
The Maximum running distance of Z-axis is 50cm, and the machine can cut stones in curved shapes with Maximum17cm thickness.
Wave Profiling
This Machine can do wave profiling at both X-axis and Y-axis. It can profile small curves for Memorial Headstones, which makes your design possible.
High-Efficiency Solution
You can put many pieces of Stones next to each other and do Wave Profiling together. The maximum Quantity can be customized up to 20~30pieces(for 10cm Tombstones).
Product Show
This machine can produce Tombstones in high precision according to drawings.
And We also can add a milling cutter on the machine to do engraving work.
Other Applications:
Factory Show
Shippment
Honour
Industry Knowledge Sharing
Headstone Production: For Enduring Memories
Headstones have long stood as a symbol of remembrance and honoring the lives of our departed loved ones. Every headstone serves as a unique tribute to the memories of those who have passed on and we all want to create a lasting legacy for them. This is where the art of headstone production comes into play.
The process of crafting a headstone begins with the selection of the perfect material, be it granite, marble, or any other stone. The chosen stone is then cut to size and shape to form the base of the headstone.
One of the crucial features of a headstone is its ability to last for generations. With that in mind, headstone producers use only the most durable materials and cutting-edge technology. From laser engraving to traditional hand carving, a headstone is a masterpiece that immortalizes the memory and legacy of those who have passed on.
Another aspect of headstone production is customization. The design and color scheme are selected to match the personality, lifestyle, or beliefs of the deceased or to meet the wishes of the family. This customization allows the headstone to be an expressive representation of the person it is commemorating.
The role of headstone producers is to enable families to create a legacy beyond the limits of time and distance. With every headstone they craft, the producers help ensure that their clients' loved ones will never be forgotten.
In conclusion, headstone production is an art form that encompasses both craftsmanship and technology, delivering durable and personalized memorials that will last for generations. Whether you want a classic or modern headstone, the process of creating a lasting gift for your loved one is a meaningful way to keep their memory alive.
Hot Tags: headstone engraving machine, China headstone engraving machine manufacturers, suppliers, factory, CNC Granite Bridge Saw, Marble Bridge Saw, Granite Bridge Saw, 5 Axis Granite Bridge Saw, CNC Marble Bridge Saw, Stone Bridge Saw
