Name: 5 Axis CNC Stone Cutting Machine
Brand: ZhongLi
SKU: 223049170

5 Axis CNC Stone Cutting Machine,Type: GRELA Plus 500/GRELA Plus 600 can use Max.500mm/600mm Saw Blade,is CNC control birdge saw. It has 5 interpolated axis: X axis, Y axis, Z axis, C axis, A axis. This machine is equipped with an industrial computer with clear interface. It's Easy to operate with CNC software. Complex Processing, like shape cutting, Line shaping, Milling, Slotting, Chamfering etc. can be processed by this machine in high-efficiency. It can process stone materilas like marble, granite, Quartz,etc.

Send Inquiry

Product Introduction

Model	GERLA Plus 500	GERLA Plus 600	Unit
Worktable size	L3500*W2000	L3700*W2300	mm
Blade diameter	350~500	350~600	mm
Maximum cutting	L3500W2000H120	L3700W2300T150	mm
X.Y. Z-axis Transmission	X.Y-axis adopts Taiwan Linear Guide Rail + helical rack and gear Z-axis adopts Taiwan Linear Guide Rail+ Ball screw.	X.Y-axis adopts Taiwan Linear Guide Rail + helical rack and gear Z-axis adopts Taiwan Linear Guide Rail+ Ball screw.
C-axis	Head rotate 0°-360°, "ZHONGDA LEADER" Robot Reducer	Head rotate 0°-360°, "ZHONGDA LEADER" Robot Reducer
A-axis	Head tilt 0°-90°, "ZHONGDA LEADER" Robot Reducer	Head tilt 0°-90°, "ZHONGDA LEADER" Robot Reducer
Camera	Brand: Hikvison, Industrial Camera	Brand: Hikvison, Industrial Camera
Control center	Quality Industry computer with touch-screen + CNC controller+ CNC software(Cut Cam) + YUHAI Servo Motor	Quality Industry computer with touch-screen + CNC controller+ CNC software(Cut Cam) + YUHAI Servo Motor
Main motor	Self-developed 5-axis special motor 22KW (permanet magnet motor with frequency)	Self-developed 5-axis special motor 22KW (permanet magnet motor with frequency)	kw
Electric Spindle for Milling Work	* Rotating speed: 0-24000 rpm * Power: 7.5kw	* Rotating speed: 0-24000 rpm * Power: 7.5kw	RPM
Total power	37	37	kw
Suction cup lifting weight	200	300	kg
Cylinders	5	5	Group
Worktable	PVC+Rubber, can tilt 85°	PVC+Rubber, can tilt 85°
Dimensions	L5750W4150H3500	L5812W4837H3558	mm
Water consumption	2	2	m³/h
Total weight	5.4	6	t
Main part delivered size	5750x2200x2500	5750x2200x2600	mm
With Front Sliding Door(√) With PVC+Rubber Worktable(√) Machine be Galvanized(√) Two Year Warrenty(√) With Electric spindle speed:24000rpm; With A Group of Rotating Cylinders to press piecework Automatically during millingwork(√) Automatic measuring probe for thickness (√) Automatic Tool Setting Gauge(√) Automatic lubrication system (√) With A Camera, Camera layout function(√) With an industrial computer and a touch-screen. Drawing function(√) Auto Lubrication System(√) With Suction Cups(√) 22kw 5-axis special permanet magnet motor, which is 40% power saving.(√)

500CNC -1

500CNC

Mono-block Structure with Man-Machine interaction

It is a monoblock machine; it takes up less space and is easy toinstall and move.It can be connected to the internet through Wi-Fi and cell phone wireless sharing, etc. to realize man-machine interaction, remote monitoring and system updating.

With Electric spindle speed:24000rpm,Power: 7.5 kw

The rotating speed of this electric spindle is super higher. It makes fast & precise

hole-drilling, engraving, curve cutting and corner cutting for Countertopc, Kitchen Sink, etc.

20241111174102

A Camera to Locate Position

Use a camera to locate the position of the plate and display it in the cutting procedure.

product-240-95

22-KW Permanent Magnet Motor

The (5+1)A type with a 22-KW permanent magnet motor can automatically adjusting the output power according to the thickness of workpieces, which is power-saving and environment-protective.

With an industrial computer and touch-screen.

This Machine has an industrial computer and a touch-screen. The interface is clear and easy to use, facilitating the interaction between the operator and the machine. The computer comes with CAM software, improve the convenience of drawing designs and programming.

With a Built-in Library of Conventional-Shaped Drawings

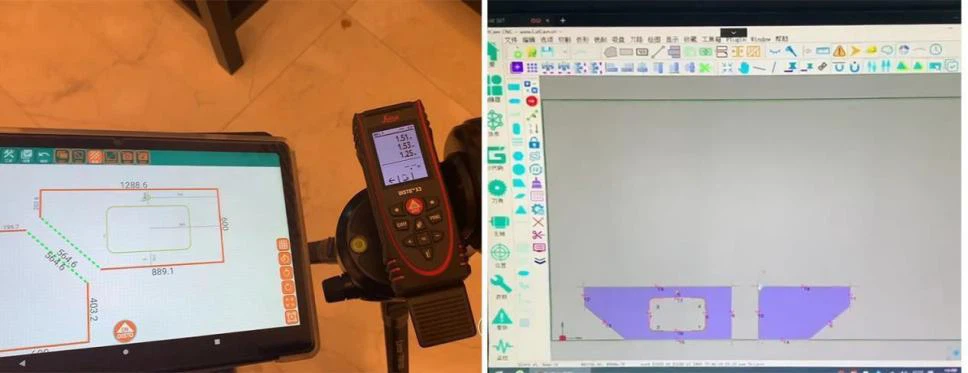

The CNC System has a built-in drawing library of conventional shapes, supporting data input, and DXF format Files. Operators can import design drawings in DXF Format to this computer, or choose conventional shapes from the built-in drawing library.

product-968-373

With Suction Cups

If the blade-cutting path conflicts, the suction cup will help to move slabs automatically. The suction sups can lift and move maximum 200kgs' slab. It makes the production fully automatic.

product-414-340

WIth a measuring probe for thickness

The measuring probe for Auto thickness Measuring.

With An automatic Tool Setting Gauge

An automatic tool setting gauge is equipped that automatically checks the blade.

product-473-342

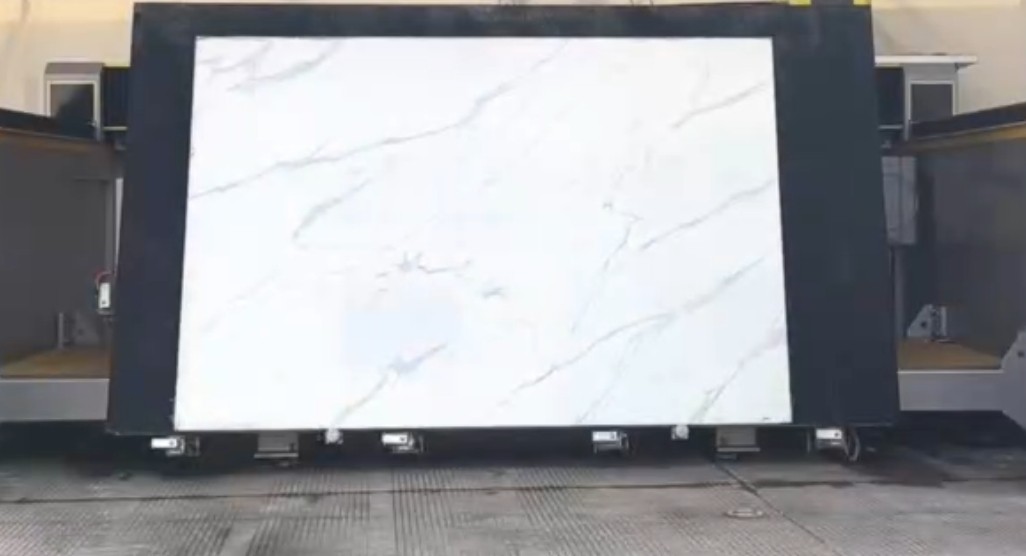

This Worktable can be Flipped over 85°, easy to load workpieces.

product-1026-556

Automatic lubrication system

product-500-400

With A Group of Rotating Cylinders

A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after work.

product-608-254
