CNC Stone Cutting Machine

Name: China CNC Stone Cutting Machine Manufacturers Suppliers Factory - Wholesale Service - Zhongli Machinery
Brand: ZhongLi
SKU: 238787667

5 Axis CNC Stone Cutting Machine can do conventional slice cutting, various chamfering and shaping, such as arc line shaping and wave line shaping with the function of photo layout, suitable for processing various types of plates such as marble, granite, quartz stone, sintered stone, artificial stone, etc. For each machine, we place the stone test machine in the factory to ensure that every detail is debugged to the best state and then package the factory. And after-sales service is so easy to provide that our technician can help the operator by remote monitoring. We provide OEM/ODM service.

Send Inquiry

Product Introduction

Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of cnc stone cutting machine in China. Welcome to wholesale durable cnc stone cutting machine in stock here and get quotation from our factory. Quality products and reasonable price are available.

Technical Parameters

Model	ZLBS-600CNC/5A	ZLBS-600CNC/5+1A	Unit
Worktable size	L3500*W2000	L3500*W2000	mm
Maximum Cutting Size	L3500W2000H150	L3500W2000H150	mm
X.Y. Z-axis Transmission	X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear +Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.	X-axis adopts #30 Linear Guide Rail + helical rack and gear + Planetary reducer. Y-axis adopts #35 Linear Guide Rail + helical rack and gear +Planetary reducer. Z-axis adopts #35 Linear Guide Rail+ Ball screw+ Planetary reducer.
C-axis	Head rotate 0°-360°, Robot Reducer	Head rotate 0°-360°, Robot Reducer
A-axis	Head tilt 0°-90°,Robot Reducer	Head tilt 0°-90°,Robot Reducer
Camera brand	Hikvison	Hikvison
Blade diameter	350-600mm	350-600mm	mm
Main motor	self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)	self-developed 5-axis special motor 22KW(permanet magnet motor with frequency)
Control center	Options: 1.Quality Industry computer + CNC controller+ CNC software(Cut Cam) + YUHAI Servo Motor 2.ESA System from Italy: ESA Industry computer+ ESA controller+ ESA Software+ ESA Servo Motor	Options: 1.Quality Industry computer + CNC controller+ CNC software(Cut Cam) + YUHAI Servo Motor 2.ESA System from Italy: ESA Industry computer+ ESA controller+ ESA Software+ ESA Servo Motor
Servo motor	1.5kw Servo motor YUHAI Or ESA (Y axis have two servo motors)	1.5kw Servo motor YUHAI Or ESA (Y axis have two servo motors)
Main motor RPM	6000	6000	RPM
Main Spindle type	Can be put a drill	Can be put a drill
Electric Spindle for Milling Work (Optional)	/	* Type: electric spindle * Rotating speed: 0-24000 rpm * Power: 5.5kw
Total power	30kw	35kw	kw
worktable flip	85°	85°
Water consumption	2	2	m³/h
Total weight	6	6	t
Dimensions	L5750W3750H4000mm	L5750W3750H4000mm	mm

New Look:

1 600CNC

Classic Look:

1 5MB 600CNC

Option: (System)

1. Self-developed CNC System with "Cut Cam"software

2. ESA System from Italy

Option: Chassis be hot-dip galvanized

Option: Add front sliding doors

Option: Worktable be faced with plastic plate and rubber

Features

Automatic measuring probe for thickness (√)
Automatic Tool Setting Gauge(√)
Automatic lubrication system (√)
With A Camera(√)

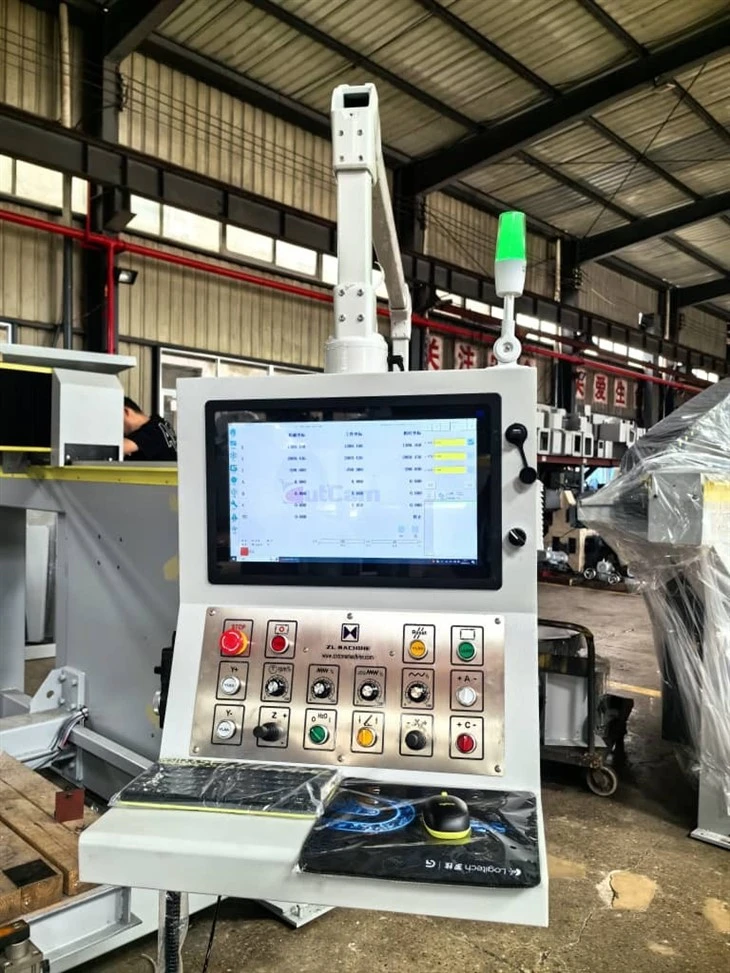

With an industrial computer and a 17" color touch-screen. (√)
With Suction Cups(√)
With A Group of Rotating Cylinders to press piecework during milling work(√)

Application Picture and Video

1. Working Videos:

CNC Stone Cutting Machine

with a router, vacuum cups, and groups of cylinders.

(ZLBS-600CNC/5+1A)

Wave Shaping

Cut and Seamless Splicing for a stone football

Arc Shape Profiling+Shape Cutting

2. Application Pictures:

Countertop

20240112111848d0d7e

countertop 3

062df62b57889d0bfdd2c6fadcee4b1

Shipment

Shipmet in a 40' High-Cube Container.

Factory

ZL Machine Facory

Professional in Stone Cutting Machine Manufacture.

Material Area 1

Operation Area 1

Rust Cleaning Line

Assembly Area 1

Machine Show Room 1

Paiting Line

Honour

gai

product-1200-601

5 Axis CNC Stone Cutting Machine can do conventional slice cutting, various chamfering and shaping, such as arc line shaping and wave line shaping with the function of photo layout, suitable for processing various types of plates such as marble, granite, quartz stone, sintered stone, artificial stone, etc.

For each machine, we place the stone test machine in the factory to ensure that every detail is debugged to the best state and then package the factory. And after-sales service is so easy to provide that our technician can help the operator by remote monitoring. We provide OEM/ODM service.
