Granite Saw For Sale
video

Granite Saw For Sale

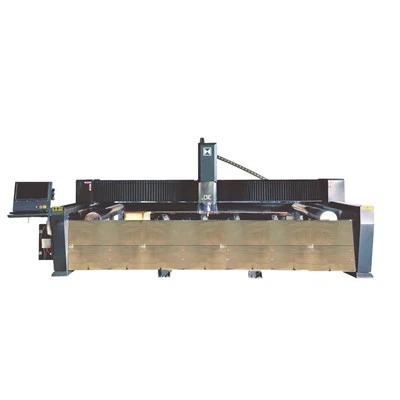

We supply "Granite Saw for Sale", 5 Axis CNC Bridge Saw for processing marble, granite, quartz stone, ceramic, porcelain, and other materials. It's a fully Automatic Machine, after taking a picture and applying the design sketch to the system, the machinery will start working automatically. Operators can process various forms of chamfering and 3D shaping, such as arc line shaping and chamfering and wave line shaping and chamfering, with the function of photo layout. We provide OEM/ODM service. Option: Chinese local system for 2D and 2.5D production, or ESA hardware with Pegasus software from Italy for 3D production.
Send Inquiry
Product Introduction



1 5MB 600CNC





Products Parameters



Model

ZLBS-600CNC/5A

ZLBS-600CNC/5A

(special design)

Unit

Worktable size

L3500*W2000

L3500*W2000

mm

Maximum Processing

L3500*W2000*H500

L3500*W2000*H800

mm

Blade diameter

₵350-600

₵350-600

mm

Control center

Industry computer with CNC System(Weihong Brand)

Industry computer with CNC System(Weihong Brand)



Driving motor

Servo motor

Servo motor



Main motor power

22 (permanet magnet motor with frequency)

22 (permanet magnet motor with frequency)

kw

Total power

30

33

kw

Head rotate

0°-360°

0°-360°



Head tilt

0°-90°

0°-90°



worktable flip

85°

no



Water consumption

2

2

m³/h

Total weight

6

6

t

Dimensions

L5750*W3260*H4100mm

L5750*W3260*H4100mm

mm

Delivered dimensions

L5750xW2200xH2500mm

L5750xW2200xH2500mm



Delivered method

The main part delivered as whole in a high-cube container

The main part delivered as whole in a high-cube container









Quotation



Granite Saw For Sale Price(USD): $30,000~$40,000

Option: (System)



1. Self-developed CNC System with "Cut Cam"software, better for 2D/2.5D Production



2. ESA System from Italy for 2D/2.5D/3D Production

Option: Chassis be hot-dip galvanized

Option: Add front sliding doors

Option: Worktable be faced with plastic plate and rubber







Product Features
1 5MB 600CNC

01



5-Axis Heavy-Duty CNC Machine

The machine is a 5-Axis heavy-duty CNC Bridge Saw Machine

It has conjoined structure, takes up less space, and is easy to install and move.

3 Camera-2

02

With A Camera to Locate the Position

This Machine equipt a high-precision camera to locate the position of the plate and display it during the cutting procedure.

It's a fully Automatic Machine, after taking a picture and applying the design sketch to the system, the machinery will start working automatically.

85

03



Worktable Turnover 85°

This worktable can be flipped over 85° for easy loading slabs.

800X400

04



Head tilt 0°-90°, Head rotate 0°-360°

The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.

6 Chamferring-2

05



Four-Side Chamfering

This machine has excellent four-side chamfering function, with excellent chamfering range 3500x2000mm.

Even big size slabs can be processed with this model.

10 Screen-2

06



With 17" Color Touch-Screen

This Machine has an industrial computer and a 17" color touch-screen.

7 -measurement load drawing--3

07



With CNC System and a Built-in Library

The system has a built-in library of conventional-shaped drawings. It supports DXF format imports from designer or countertop measuring gauges.

Operators can process various forms of chamfering and 3D shaping, such as arc line shaping and chamfering and wave line shaping and chamfering, with the function of photo layout.

8 An automatic tool setting gauge is equipped that automatically checks the blade--2

08



With Automatic Tool Setting Gauge

An automatic tool setting gauge is equipped that automatically checks the blade.

It ensures high-precision Production.

suction cups

09



With Suction Cups

If the blade-cutting path conflicts, the suction cup will help to move slabs automatically.

It enables complete automatic Production.

1122kw1

10



With a 22-KW Permanent Magnet Motor

This Machine has a 22kw Permanent Magnet Motor

It can automatically adjust the output power, strength, and is power-saving and environmental friendly.





Application Videos



CNC System Operation
Interest Production--Making a Stone Football?
Wave Shape Profiling
Arc Shape Profiling+Shape Cutting





Application Pictures
3
12
13
1
7
17Wave 3d
5
product-300-300
2
17-





Shipment
2
3





Factory Show
7
10
5
4gai
20230531150745gai
6





Honours



ZL Machine was founded in 1993, and specializes in stone machine manufacture.

After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.

gai

product-1200-601


FAQ

Q: Can you make Sample production according to my requirement?

A: Of Course. You can send us the design Drawing, we'll produce a sample and take a video for you.

Q: Where is your factory located ? How can I visit it ?

A: Our factory is located in Taizhou city,Zhejiang province,China. After you reach local airport or high-way Station, we will pick you up.

Q: What is your MOQ of your machine?

A: Our MOQ is 1 set.

Q: How long is the production time?

A: It generally takes 30 days

Q: This is the first time I buy the machine, is it easy to operate?

A: This Machine is easy-operated even for new beginners, and we will provide the operation manual&video. We also provide free online service.





Contact now





FACTORY






Industry Information Sharing

Can granite be used for interior decoration?


Granite is hard and difficult to be eroded by acid, alkali or weathering, and is often used as a building material. Many people ask masons about the fact that granite is also a stone material. Granite has high hardness and is not easily eroded by air, rain, etc. It is not so easy to return to alkali, and the price is much lower than marble. Can granite be used for interior decoration?



The etymology of granite is the Latin granum, and the Chinese noun granite was translated by the Japanese. Dictionaries and geology books from the early Meiji period translated Granite as granite or granite. The word "flower" describes that this kind of rock has beautiful patterns, while "gang" or "gang" means that this kind of rock is very hard, which means a hard rock with flower-like patterns. Chinese scholars followed this translation and determined the name of China's common granite.


Granite is a coarse-grained or medium-grained intrusive rock rich in quartz and feldspar. It is a common plutonic rock in the earth's crust. It is formed by the cooling of magma deep in the earth's crust. Some granites are gneiss or mixtures formed by the metamorphism of magma and sedimentary rocks. Lithified rock. The main minerals of granite are feldspar, quartz, black and white mica, etc. [1], and the quartz content is 10% to 50%. The feldspar content is about 2/3 of the total, which is divided into orthoclase, plagioclase (soda lime) and microcline feldspar (potash). Different varieties have different mineral compositions, and may also contain pyroxene and amphibole.
Granite stone is divided into different grades according to factors such as color, pattern, luster, structure and material. The Bureau of Mineral Resources of Taiwan's Ministry of Economic Affairs divides granite into six categories: black, brown, green, off-white, light red and dark red.


Advantages of granite


No.1 Good stability
Granite is formed under high temperature, high pressure or high temperature condensation conditions. Due to the close distribution of minerals, the extremely small gaps between particles, as well as the multiple tectonic movements and long-term changes in cold and heat since its formation, the residual internal material stress inside the granite has basically disappeared. Therefore, granite is extremely hard and chemically stable. Granite is not prone to elastic deformation and plastic deformation, and can maintain high accuracy under heavy load. Even if it is used frequently for five or six years, only a small amount of gravel will fall off after surface scratches or collisions, without deformation or burrs.


No.2 Easy to maintain
Granite has strong corrosion resistance and can resist the erosion of common acid and alkali gases and solutions. It does not need to be coated with any anti-rust grease. There is no need to worry about rust and environmental humidity when using it. If there are stains on granite, it is difficult to invade. This is because granite has high density and basically no pores. After use, you don't have to worry about moisture and stains infiltrating, and it is more convenient to clean.


No.3 price is relatively low
Granite is always less expensive than other materials of the same size, or even other stones of the same size. And because granite stone is weather-resistant, corrosion-resistant, wear-resistant, and has low water absorption, granite phase change reduces maintenance costs and extends service life.

In addition, granite stone is relatively brittle, and only part of it will fall off after damage, which does not affect the overall flatness and is relatively easy to maintain.


Disadvantages of granite

No.1 colors are limited,

No.2 single texture
Compared with marble, the colors available for granite are limited. If you want more variety in your home environment, then you will find that the colors and designs available for granite are too limited.


No.3 easy to slip
Due to its high density, granite is very slippery if there is water on it, and is not suitable for use on floors in wet areas. If granite is to be installed on the bathroom floor, grooves must be cut on the surface to increase the anti-slip properties, otherwise there will be Certain danger.

Compared with granite, marble has rich colors, fine texture, and is more artistic, and is more popular in interior decoration. Granite has a single pattern, is not very decorative, and is hard, not easily damaged, and highly radioactive. outdoor.

Just like people, the most suitable one is the best. Granite and marble each have their own merits, and they can exert their greatest value in the fields that suit them. Therefore, granite is most suitable for outdoor decoration. The stone of choice for indoor decoration is marble.
