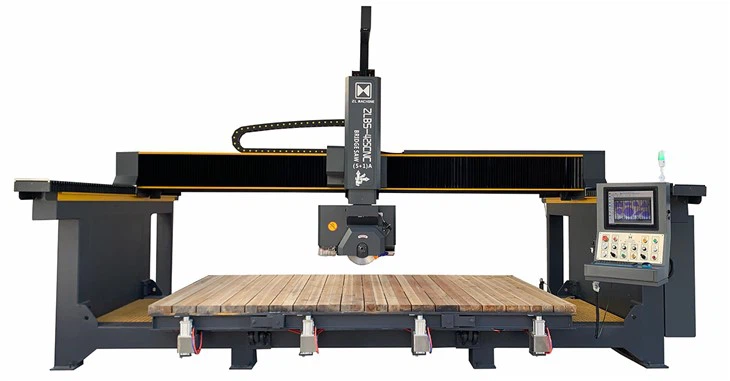

Commercial Stone Cutting Machine

For processing marble, granite, porcelain, and quartz stone countertops, we provide commercial stone cutting machine of the ZLBS-425CNC/(4+1) A type and the ZLBS-425CNC/(5+1) A. It is a precise, effective, and user-friendly machine. Take a picture first, then load the drawing and start by aiming the plate inside the picture. A high-cube container can hold the countertop Bridge Saw's main component.We provide OEM/ODM service.
Send Inquiry
Product Introduction

Linhai Zhongli Machinery Manufacturing Co., Ltd. is one of the most reliable manufacturers and suppliers of commercial stone cutting machine in China. Welcome to wholesale durable commercial stone cutting machine in stock here and get quotation from our factory. Quality products and reasonable price are available.



 51

Model

4+1 Axis CNC bridge saw

5+1 Axis CNC bridge saw

Unit

Worktable size

L3500*W2000

L3500*W2000

mm

Maximum cutting

L3500*W2000*H90

L3500*W2000*H90

mm

Maximum chamfering

L3500*W2000*H60

L3500*W2000*H60

mm

Blade diameter

350-425

350-425

mm

Main motor power

15

22 (permanet magnet motor with frequency)

kw

Router power

5.5

5.5

kw

Control center

industry computer with CNC

industry computer with CNC



Controller brand

"Cut Cam" CNC System

"Cut Cam" CNC System or ESA system from Italy



Driving motor

Servo motor

Servo motor



Router max speed

24000

24000

RPM

Total power

28

35

kw

Suction cup lifting weight

200

200

kg

Head rotate

0°-360°

0°-360°



Head tilt

0°and 45°

0°-90°



Cylinders

5

5

group

Dimensions

L5750*W3260*H3800

L5750*W3260*H3800

mm

Water consumption

2

2

m³/h

Total weight

5.4

5.4

t

Main part delivered size

5750x2200x2500

5750x2200x2500

mm

Machine-delivered method

Main part delivered as a whole (HQ container)

Main part delivered as a whole (HQ container)








Price: $30,000~$40,000

Option: (System)



1. Self-developed CNC System with "Cut Cam"software

2. ESA System from Italy

Option: Chassis be hot-dip galvanized

Option: Add front sliding doors

Option: Worktable be faced with plastic plate and rubber






Feature



1: The machine is a conjoined structure; it takes up less space and is easy to install and move.



2: This machine has excellent four-side chamfering function and an excellent chamfering range 3500x2000mm



product-1-1



​3: With an industrial computer and a 17" color touch-screen.



product-1-1



Option: own CNC system or ESA system from Italy


4: Use a camera to locate the position of the plate and display it in the cutting procedure.



product-300-376


5: The (5+1)A type with a 22-KW permanent magnet motor can be cut along with the thickness of the cutting plate, automatically adjusting the output power, strength, and power-saving environmental protection.


6: An automatic tool setting gauge is equipped that automatically checks the blade.



product-1-1


7. The system has a built-in library of conventional-shaped drawings and also supports DXF format imports from a designer or a countertop measuring gauge.



product-1500-573





































8: The worktable can be flipped up to 85°.


9: A group of rotating cylinders on the side of the work table will automatically press the plate when the milling cutter works and automatically withdraw after the milling cutter works.



product-1200-605



10: Option: the machine chassis could be hot-dip galvanized, and the worktable could be faced with plastic plates and rubber.



product-1-1



11: Option: front sliding door

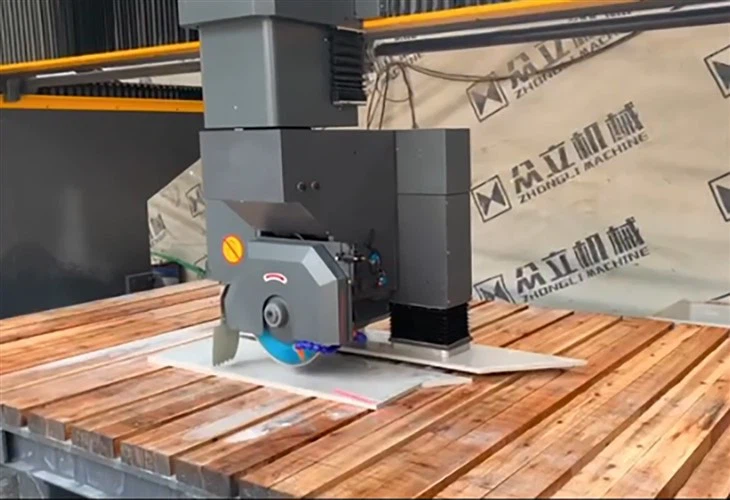

Application Picture and Video











2



1

3



Shipment

3

product-1200-1239

2

Factory



product-1200-809

20230531150745gai

4gai

20230531150759gai



Honour

gai

product-1200-601



Commercial stone cutting machines are a powerful and reliable tool that has revolutionized the stone-cutting industry. These machines are designed to cut through a variety of materials, including granite, marble, and quartz, with speed, precision, and accuracy, making them an essential addition to any construction site or stone-cutting workshop. In this article, we will be discussing the various advantages of using commercial stone cutting machines.

Firstly, commercial stone cutting machines are incredibly efficient. They reduce the amount of time it takes to cut large stone slabs or blocks significantly. The machines can cut multiple pieces of stone at once, which helps to complete projects faster than using traditional methods. This means that businesses can take on more projects, leading to increased profits and productivity.

Secondly, commercial stone cutting machines provide precise cuts and consistent results. These machines are designed with advanced technology and software that offers millimeter-accurate cuts every time. They are also fully automated, meaning that the operator can program the shapes and measurements required, and the machine will execute them with precision repeatedly.

Thirdly, commercial stone cutting machines are easy to use and require minimal training. Many of the machines come with user-friendly software and intelligence systems that simplify operations, allowing even an inexperienced operator to use it efficiently. This feature saves both time and money on training costs since anyone can quickly learn how to operate the machine.

Fourthly, commercial stone cutting machines eliminate fatigue among operators. Traditional methods required a lot of manual labor, such as drilling and cutting with a saw. This often led to fatigue and physical injuries among workers. However, with commercial cutting machines, the task is mostly automated and requires minimal manual labor, reducing the occurrence of injuries and fatigue.

Lastly, commercial stone cutting machines are highly durable and require minimal maintenance. The machines are designed with high-quality materials, such as stainless steel and durable blades or bits, making them last long. They also have a low breakdown rate, meaning that they frequently require only routine servicing.

In conclusion, the advantages of using commercial stone cutting machines cannot be overemphasized. They are powerful, efficient, and precise, making them an essential tool in the stone-cutting industry. The machine's ease of use, minimal maintenance, and durability make it an excellent investment for any construction or stone-cutting business looking to increase production, save time and money and increase profits. Businesses that embrace the technology and economies of scale that commercial stone-cutting machines offer will undoubtedly benefit from higher productivity and profitability.

Hot Tags: commercial stone cutting machine, China commercial stone cutting machine manufacturers, suppliers, factory, 5 Axis Granite Bridge Saw, CNC Marble Bridge Saw, CNC Granite Bridge Saw, Marble Bridge Saw, Granite Bridge Saw, Stone Bridge Saw
